Campden Instruments (Vibrotome) products
Vibrotome Accessories
Campden - Multi-Cell Slice Chamber for Electrophysiology and Biochemistry
The 7450 Multi-Cell Slice Chamber by Campden Instruments is engineered for advanced electrophysiological and biochemical research. This versatile system supports dual operational modes—Submerged and Interface—allowing flexibility for diverse laboratory settings. Constructed with acrylic (Perspex/Plexiglas) or PTFE (Teflon) materials, these chambers are robust and adaptable. Each cell chamber is removable, enhancing ease of maintenance and customization. The chambers include Ag/AgCl reference electrodes ideal for intricate tissue studies, while integrated micromanipulator-compatible layouts ensure precise electrode placements. Temperature control is finely tuned with a digital display heater/controller employing PID algorithms, achieving ±0.1°C stability in the water bath. Notably, the system's design accommodates seamless expansion from standalone units to fully automated setups in electrophysiological workstations like the Synchroslice, catering specifically to hippocampal and cardiac tissues. Overall, the 7450 system is a pivotal tool for laboratories requiring precision and adaptability in slice preparation and analysis.
Vibrotomes
Campden - Vibrotome for Electrophysiological Applications
The 5100mz-Plus Vibrotome is a sophisticated instrument designed for researchers requiring precise tissue slicing, especially suitable for maintaining the viability of slices for electrophysiological field recordings. It features a Z-axis calibration unit with a calibration device capable of adjusting the blade deflection to 2 micrometers, significantly reducing slice surface damage and maintaining cell viability. The vibrotome operates with a vibration frequency ranging from 50 to 80 Hz and features an adjustable amplitude of 0.5mm to 1.5mm, allowing for fine control of the blade advancement, with a minimum speed of 0.1 mm/sec. Its remote control capability ensures sterile operation within culture hoods, and the user-friendly interface, shared with the premium 7000smz-2 series, facilitates comprehensive parameter adjustments. Optional features, such as a Peltier cooled bath and a cold light magnifier, enhance its functionality, making it suitable for prolonged experiments. An ice water bath component ensures easy maintenance and cleaning.
Campden - Advanced Vibrating Microtome for Tissue Sectioning
The Campden 9000SMZ Vibratome is a sophisticated vibrating microtome designed for precise sectioning of both live and fixed tissues. It is highly regarded in diverse research fields, including neuroscience, cardiac, lung, liver, organoid, and plant research. The device offers high precision in slicing, providing exceptional control over slice quality while maintaining tissue viability. Its innovative features, such as adjustable blade frequency and amplitude, precise advance speed control, and capability to store multiple user slice profiles, make it exceptionally versatile for various applications like electrophysiology, imaging, pathology, and toxicology. This vibratome ensures superior tissue integrity, minimal mechanical damage, and high reproducibility, supported by a smart control system that offers real-time feedback on slicing parameters. The integrated cooling tray and optional Peltier device extend slice viability for long experimental sessions, making it an ideal choice for comprehensive tissue studies.

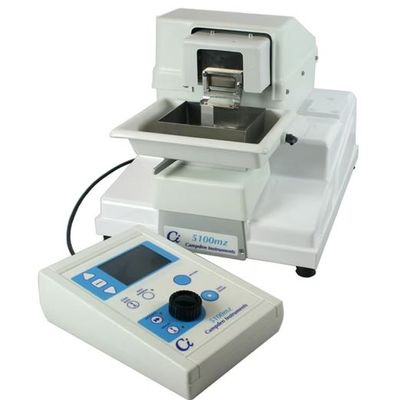

Campden - Advanced Microtome for Precision Tissue Sectioning
The 5100mz Vibrotome by Campden Instruments represents a sophisticated tool for precision tissue sectioning, suitable for applications such as histology, organotypic slice culture, and imaging tasks. Operating with a vibration frequency adjustable between 50 to 80 Hz, it offers fine control over the blade advance, maintaining a minimum increment of 0.1 mm/sec for meticulous sectioning. The device allows the user to set precise start and stop positions for blade travel, and its remote controls facilitate sterile operation in culture hoods. A detachable ice water bath ensures easy cleaning, while optional features like a cold light and magnifier enhance the visualization of tissue sections. Moreover, the 5100mz integrates seamlessly with advanced parameters shared with the premium 7000smz-2 series, while its Peltier-cooled bath is optional for maintaining specific temperatures. Designed with a focus on ease of use, this entry-level microtome is equipped with a sturdy fixed blade holder and exhibits a mechanism Z-axis error of around 5-8 micrometers, making it apt for researchers in technical fields seeking accuracy and reliability.
