The X-DRS Floor Basic is an X-ray system composed of the classic combination of a bucky table and a wall unit. This allows you to perform a wide range of different X-ray examinations. Recumbent position and other table-top exposures can be performed on the fixed X-ray table, and images can also be acquired standing and under stress using the wall unit. The compact X-DRS Floor Basic table/wall system is ergonomically engineered for smooth, trouble-free operation and requires relatively little space. The EXAMION X-ray system is a guarantee of comfortable, user-friendly operation for system users, with easy positioning of patients and a electromagnetic braking system. The primary focus is on basic functions to ensure the smoothest operation possible.

The X-DRS Floor Standard X-ray system is designed for maximum ease of use and maximum efficiency under any working conditions. The floor-mounted X-ray system bucky trays on the tabletop or wall stand are synchronised to the X-ray tube emitter by electric motor, including during angle shot exposures. This gives your X-ray personnel the best possible support for proper positioning and saves valuable time. In addition, the bucky tray on the wall unit and the X-ray tube can be lowered very close to floor level for convenient acquisition of lower extremity exposures, such as ankle images under load.

The X-DRS Floor U-Arm X-ray system takes up very little space in your X-ray room, without sacrificing anything in terms of comfort for the operating staff. The U-arm system enables convenient touchscreen control and motorised positioning for the comfort of your patients. Positioning is effortless in these cases, thanks to the motorised height adjustment of the U-arm and the motorised adjustment of the source image distance. Positioning is at the touch of a button, so you can operate the X-ray system for longer periods of time without interruption.

Is space limited in the X-ray room at your practice? The compact design of the X-DRS Floor U-Arm means that you can easily save on space – without compromising on quality or reliability. Thanks to the purely mechanical system in particular, the components are above all durable, which is why you will experience the swivel bracket a reliable working aid. Experienced X-ray staff will find it easy to position the U-arm system correctly, and adjustments such as switching between recumbent and standing examinations by rotating the swivel arm, adjusting the swivel arm height for standing examinations and changing the source image distance can be carried out even more quickly than with a motorised U-arm system. New staff members will soon get used to the system and learn how to position the unit.

Our X-DRS Floor Z-Arm X-ray system is designed for enhanced user convenience. It is fully motorised, so that there are no movements that your operators  have to perform mechanically. The swivel bracket system is particularly convenient if you operate the X-ray system without interruption and for long periods, and if you often have to take oblique images. The system is conveniently positioned at the touch of a button. On the touchscreen, you can select saved positions for the respective X-ray examination, including rotation of the bucky tray – so the positions for oblique images can also be saved.

EXAMION image plate systems (otherwise known as computed radiography (CR) systems) are an ideal entry-level and/or backup facility, offering a cost-optimised solution for digital X-rays. Image plate systems are compact table-top devices. Their basic functioning relies on a two-step process which generates the X-ray images. After the imaging plate is exposed to the radiation source, the CR cassette is then inserted in the scanner where it is read. Only at this stage can the digital X-ray image be displayed on the viewer.

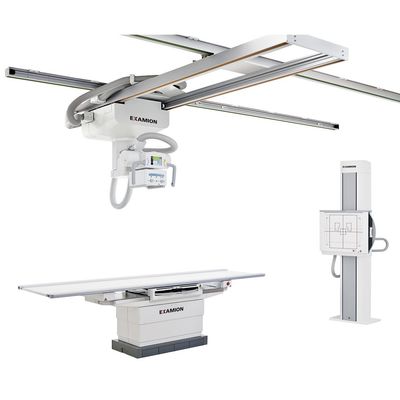

The X-DRS Ceiling Standard is an extremely robust X-ray system, suitable for the entire range of radiological examinations in hospitals. The various settings for X-ray doses and generator operation are fully configurable to the corresponding requirements of the operator or the examination, ensuring adequate power reserves in all cases. In the standard version, the X-ray system is equipped with electromotive tracking functions that assist the operator to obtain correct positioning prior to X-ray exposure. The X-ray tube itself is motorised and is moved into position by the tracking system when the table or wall unit is moved. The stitching function version offers the highest degree of motorised movement, allowing fully automatic full-leg or full-spine imaging acquisition at the wall unit.

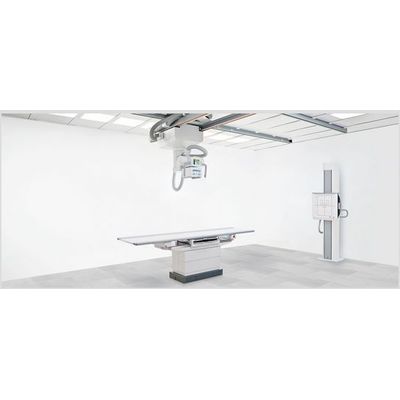

Experience the convenience of digital X-rays with a highly integrated X-ray system. The ceiling-mounted EXAMION X-DRS Ceiling Automatic offers sophisticated auto-positioning options, making it a reliable all-round system for the generation of radiological images in clinical settings. Hospital users will benefit from the extra physical support and the corresponding reduction of manual effort. When auto-positioning is activated, the X-ray system moves into the basic position considered optimal for the particular X-ray image. Only minor adjustments are required to accommodate each individual patient. This allows your X-ray staff to concentrate fully on patient-specific fine-tuning, while the system does most of the work entirely automatically. This not only reduces the risk of taking the wrong X-ray image, but also brings more efficiency to your workflow, resulting in significant time savings for you.

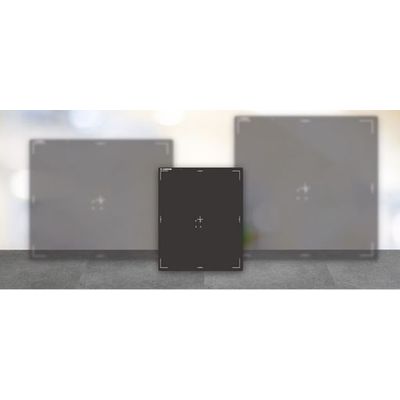

The focus of our bestseller is on providing an outstanding price-performance ratio. A special feature of the detectors is the very good image quality, which meets even the highest expectations. 35 cm x 43 cm. 43 cm x 43 cm.

The premium versions of our detectors are characterised by their low weight and a high degree of protection against the ingress of fluids.  With their small pixel size of only 100 μm, they provide digital X-ray images of outstanding quality that meet the most exacting requirements. The dimensions of the Premium X-ray detectors are the same as those of our bestseller. 35 cm x 43 cm. 43 cm x 43 cm. light weight. high water resistance.
