Micron Solutions products

Micron provides disposable radiotranslucent electrode sensors that permit radiological, magnetic resonance, and other imaging examinations without electrode removal and/or replacement. The sensor elements can be silver/silver chloride coated to a specific thickness and are also available as uncoated conductive carbon fiber for other biomedical applications.

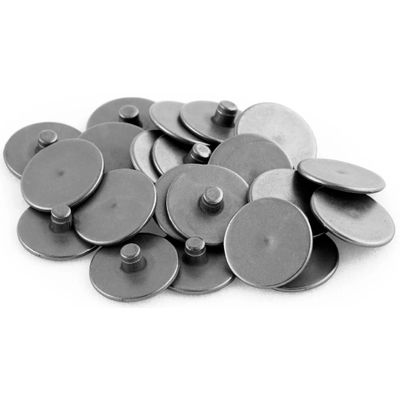

These sensors – used primarily in heart monitoring and bioinstrumentation electrodes – feature a silver or silver chloride coating over a molded plastic substrate. They are available in various silver thicknesses over either a fiberglass reinforced or conductive carbon filled resin substrate. The most popular configuration is 85 microinches of silver/silver chloride over a fiberglass reinforced plastic substrate. Several dimensional styles and configurations are available; all of which mate with either a stainless steel or nickel-plated brass top snap that accepts industry standard parallel spring or clip type lead wires.
