Advanced Energy - Model SL Power - GB20 Series -20 W Single Output Medical and Industrial Grade System

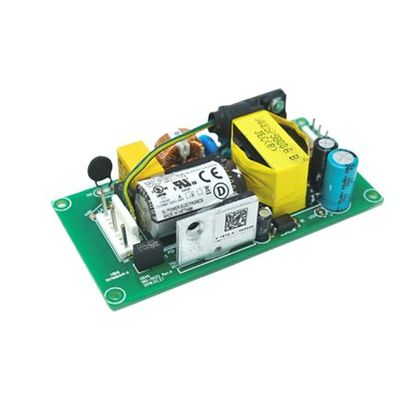

Advanced Energy’s SL Power GB20 series of open-frame AC-DC power supplies comprises seven single output models. All models feature medical safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overload protection, with short-circuit protection on the output. GB20 series power supplies provide 20 W of output power with free air convection cooling.
Most popular related searches
- 20 W Open Frame and PCB-mount Power Supply
- 1.6” x 3.38” x 1.0” Package
- Universal Input 90 to 264 VAC
- <0.1 W no load input power
- >1,000,000 hours MTBF
- Approved to EN/IEC/UL62368-1
- Approved to CSA/EN/IEC/UL60601-1, 3rd Edition
- Meets Class B Radiated & Conducted EMI with margin
- Meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC
- E-Cap life of >7 years
- 3-year warranty
- Output Power (W): 20
- Length (Inches): 3.38
- Width (Inches): 1.6
- Height (Inches): 1
- Mounting Type: Embedded PSU
- Minimum Output Current (A): 0.4
- Maximum Output Current (A): 3
- Output Voltage Range (V): 5V to 48V
- Minimum Output Power (W): 15
- Maximum Output Power (W): 20
- Minimum Input Voltage (V): 90
- Maximum Input Voltage (V): 264
- Warranty (Years): 3
