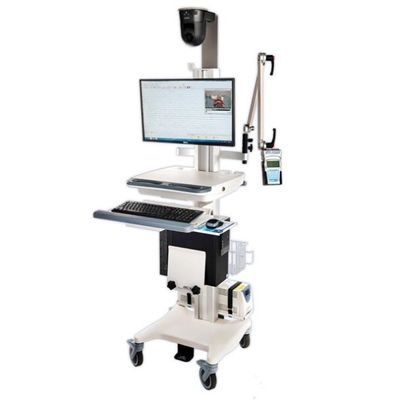

Brain Quick - Model LTM -32 to 256 Channels Line System
The BRAIN QUICK LTM Line offers easy expansion from 32 to 256 channels and can be used as a wireless, wired or ambulatory system. Its compact, lightweight footprint and limitless patient mobility makes the system ideal for pediatric LTM studies. The small, versatile SD LTM 32 PLUS and SD LTM 64 PLUS amplifiers can serve as a 3-in-1 system: wired headbox, wireless headbox or ambulatory recorder.
Most popular related searches
- Full patient mobility
- Continuous, uninterrupted data collection
- 3-in-1 system with wireless, wired and ambulatory mode
- Modular design for easy channel expansion
- Ultra-compact and durable design to withstand the hospital environment
- Synchronized Full HD Video (1920×1080)
- High sampling rate up to 16 KHz
- Compact add-on cortical stimulator
- LCD display for impedance checks and warnings
- All channels can be switched to DC independently
- Record patient with up to 5 cameras
SD LTM PLUS 32
- 32 Common Ref. EEG channels
- DC mode
- 8 User Selectable Bipolar/Common Reference EEG Channels
- 2 Inductive Belt Respiration Channels
- 2 extra DC Channels
- 3 Oxymeter Channel (SpO2, Pleth., Beat)
- 1 Embedded Body Position
SD LTM PLUS 64
- 64 Common Ref. EEG Channels
- 8 User Selectable Bipolar/Common Reference EEG channels
- DC mode
- 2 Inductive Belt Respiration Channels
- 2 extra DC Channels
- 3 Oxymeter Channel (SpO2, Pleth., Beat)
- 1 Embedded Body Position
SD LTM PLUS 128/256
- Easily combine two or four Amplifiers for 136 or 256 channel configuration
- One-wire transmission with quick disconnect
- Full data synchronization
SD LTM Stimulator
- 0.1 to 15 mA by step of 0.1 mA
- Measure of Really Delivered Current
- Monophasic or Biphasic Stimuli
- 0,06 to 300 Hz Pulse Rate
- 25 to 1000 µs Pulse Duration by step of 25 µs
- 3x AAA Battery Powered
