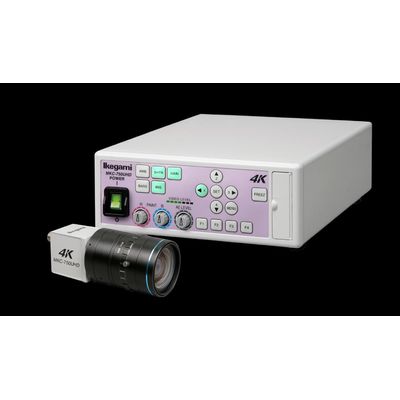

Ikegami - Model 3CM0S - MKC-750UHD -4K Medical Grade Camera
Ikegami has developed Medical Grade 4K Camera MKC-750UHD to be suitable for surgical video operations, Microscopes o Endoscopes. MKC-750UHD is the first developed medical 4K 3 sensors camera from Ikegami. With the latest 3-CMOS and Ultra HD resolution (3840x2160pixels), the MKC-750UHD gives the superb high picture quality. The camera will be avilable for OEM, the camera head, Camera Control Unit and Medical grade cable will be offered as per customer`s requierd specifications.
- 3 Chip CMOS progressive Image Sensor
- High Quality 4K image (3840 x 2160 pixels)
- Various Video Outputs
- Ultra Compact Camera Head: W34 x H40 x D40 mm
- OEM Possibility
Employs a 1/3-inch 3 CMOS sensor ,Ultra HD resolution (3840x2160pixels) 4K.
Progressive processing with newly developed digital engine delivering improved resolution in detail and dynamic resolution.
Digital capture allows a captured image to be flipped horizontally and vertically. Remote controllable via an external optional unit such as a foot switch.
Max. 4x zoom is available.
Each correction/function setting (four positions) can be saved and loaded easily.
Video level can be checked and adjusted using a level indicator.
The camera-head and CCU (camera control unit) use an antibiotic to help to improve infection control.
- Image Sensor: 1/3-inch 3CMOS
- Lens Mount: C-mount
- Sensitivity: 2000 lx F8 / 3200 K or better
- S/N: 58 dB (Gamma / * Detail OFF)
- Output signal 4K: 3G-SDI 4 ch
- HDTV: HD-SDI (1920 x 1080 i/p) BNC 2 ch
- DVI (1920 x 1080 i/p) 1 ch
- External Synchronization: HDTV Tri-Level SYNC 1 ch
- Auto GAIN: Available
- Auto White: Available
- Auto Iris: Available
- Auto Shutter: 1/100 - 1/10000
- Shading Correction: Available
- Digital Zoom: Max. 4 position
- DC Iris Control: Available (from CCU)
- External Control: RS-232C 1 ch
- Operating Temperature: 0 to 40 °C
- Power Requirement: AC 100 - 120, 200 - 240 V ± 10 % 50/60 Hz
- Weight: Camera Head: less than 100 g; CCU: less than 3 kg
- Dimensions: Camera Head: W 34 x H 40 x D 40 mm; CCU: W 210 x H 80 x D 270 mm
