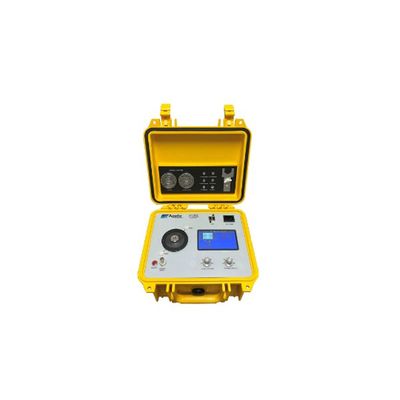

Agate Technology - Model AT2035 -Accelerometer Calibrator

AT2035 accelerometer calibrator features two main operating modes to validate sensors or conduct system loop checks.

•  Mode one is a “shake” operation in which the PVC operates as a simple shaker table. This is useful for performing end-to-end checks or other vibration testing where accelerometer sensitivity is not needed.
• The second mode to select from is “test” mode which  sensitivity readings. These readings can be done in manual mode or full automatic mode. When performing sensitivity test in full automatic mode, a PDF certificate is also generated by the AT-2035 portable accelerometer calibrator.

• A2LA Accreditation ISO/IEC 17025:2017*
• Quartz Reference Accelerometer
• Calibrated back-to-back with a laser calibrated primary reference for increased accuracy.
• Digital closed loop control.
• Digital Electronics
• 100-240v power with standard plug receptacle and built-in charger.
• Custom PC Software included to setup Full-Automatic Test Mode
• Built in Charge Converter
• Automatic PDF certificate generation tailored to your custom specifications
• Export Data to CSV.
• Option to include phase data
• Connect to a PC through Wi-Fi and control the device from a remote location with Google Chrome’s built in VNC viewer

The AT2035 is packed with features and functionality. Comprehensive and user-friendly software tools help operators quickly identify and address issues in their vibration system setups

• Create calibration certificates for vibration instruments.
• Test all types of vibration sensors and transducers from a variety of accelerometer and eddy current probe manufacturers.
• Provides a closed loop controlled reference signal from 5 Hz to 10,000Hz for testing over a wide frequency range.

The AT2035 has many applications including:

• Cabling and wiring troubleshooting
• Calibration for:
• Accelerometers
• Proximity probes and drivers
• Monitoring systems
• Charge amplifiers
• Avionics equipment

• Type : Portable Vibration Calibrator / Shaker table
• Frequency Range : Vibration Signal: 5-10k Hz
• Vibration Signal : Variable frequency and amplitude
• Test Types : Manual sensitivity, Automatic sweep with optional phase data, and Certification.
• Supported Sensor Input Types :
• Accelerometer:
• Voltage
• IEPE
• Charge
• Velocity
• Coil
• Limited Proximity Probe Support
• Certifications and Agency Requirements :
• A2LA Accredited Calibration
• ISO/IEC 17025:2017
• R205
• NIST Traceable
• LVD: EN61010-1: 2010
• EMC: EN61326-1
• CE Mark: Product Specific Standard
• RoHS
