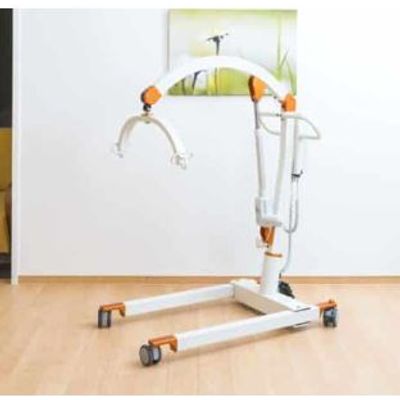

Savaria CARLO - Alu Classic Floor Lift
The CARLO Alu Classic Floor Lift is engineered to optimize both caregiver and resident safety during daily lifting, transfer, and repositioning tasks. Constructed with lightweight yet robust aluminum, this lift features a 6-point carry bar with a low-profile design, facilitating ease of transfer for various applications such as toileting, bathing, and beds. The Anti-Rotation Mechanism (ARM) is integrated to prevent the carry bar from unwanted rotation, enhancing stability and comfort during transfers. Its advanced carry bar and height adjustment system are complemented by electrically spreadable legs, further increasing its maneuverability. Accommodating up to 230 kg (507 lbs), the lift is ideal for diverse care settings, including home and clinical environments. With a 24V LINAK drive and precise power consumption of 2.9 Ah, this lift supports efficient and reliable operation for a range of patient needs. Dimensions include a 1,400 mm lifting range and outer and total widths perfectly suited for secure and versatile usage.
Characterized by a very light and stable aluminum construction, CARLO Classic supports caregiver and resident safety in daily lifting, transfer and repositioning tasks.
Featuring a 6-point carry bar that can be easily lowered to the floor for lifting residents in slip and fall accidents, the low height of the carry bar can also facilitate transfers to bathtubs and beds. Featuring an Anti-Rotation Mechanism (ARM), CARLO Classic removes any involuntary rotation of the carry bar during transfers and reduces uncomfortable swivel movements, providing the resident an extra feeling of safety.
- Available with low legs to accommodate lower beds, stretchers and furniture
- Optional calibrated patient scale up to 551 lbs (250 kg)
- Safe working load options of 185 kg (408 lb) and 230 kg (507 lb)
Light construction. Chassis, lifting column and components made of 100% aluminum.
Universal usage for transfers, toileting, bathing and showering
Suitable for all loop slings
Advanced Carrybar and Height Adjustment System
- Anti-Rotation Mechanism (ARM) with 360º free rotation for seamless handling
- Versatile 6-point design enables easier, safer and more comfortable patient transfers
- Electric height adjustment allows carrybar to be lowered to floor level, with a manual emergency lowering system for added safety
Electrically spreadable legs with low height
- Easily maneuver underneath baths and beds
Cable Remote Control
- Battery Charging Condition
- Failure Diagnostics
- Service Notifications
Easy maneuverability
- Four high-quality double castors provide easy movement
- Two castors with brakes
