Hugo Sachs - Model APT 300 -Arterial Blood Pressure Transducers
Inexpensive pressure transducer used to measure arterial blood pressures in all species, even on mice with a high heart rate. This APT300 Transducer is an inexpensive pressure transducer which can be used to measure arterial blood pressures in all species, even on mice with a high heart rate. This transducer is typically used for arterial pressure measurement in vivo, perfusion pressures in isolated perfused organs such as heart or kidney, Isovolumetric Left Ventricular (using a balloon) pressures in isolated hearts from mice up to rabbits or pigs.
Most popular related searches
blood pressure
arterial blood
artery pressures
arterial pressure
blood pressure transducer
blood pressure monitoring
blood pressure arterial
heart rate
arterial measuring
in vivo measurement
- Inexpensive, reliable and accurate
- Low volume displacement
- Suitable for virtually all arterial pressure applications
- Easy to fill
- Stopcocks included
- Simple holder for rod mounting

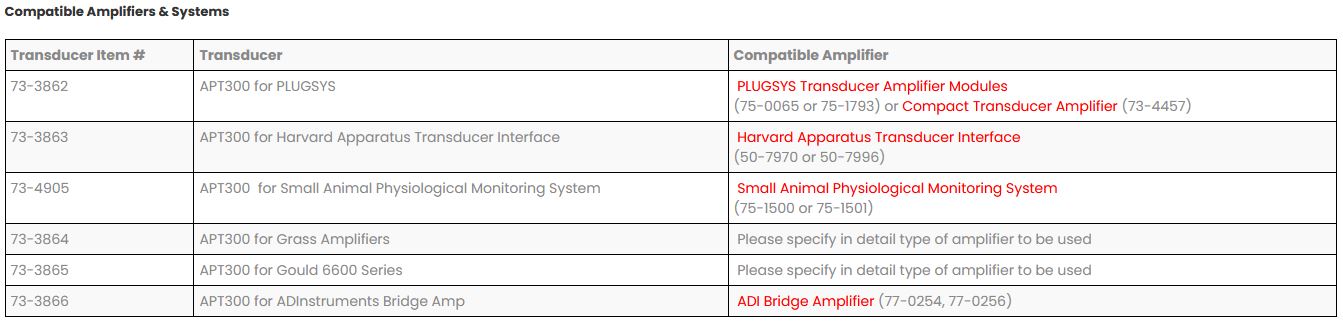

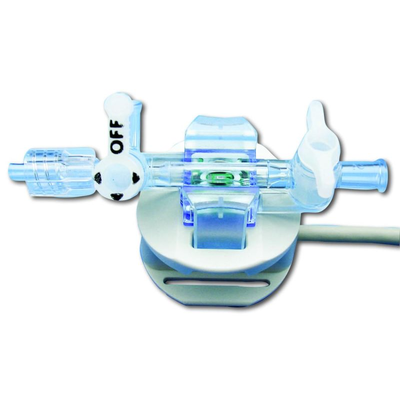

The APT300 Transducer consists of a contact plate with cable and the exchangeable transducer head, which can easily be replaced. Contact plates with cables for different amplifiers are available.
- Operating Pressure: -300 to +300 mmHg
- Overpressure: 4000 mmHg
- Sensitivity: 5 µV/V/mmHg (±1%)
- Temperature Coefficient: 0.1%/°C
- Zerodrift: <0.2 mmHg/°C
- Zero Offset: <25 mmHg
- Excitation Voltage: 2 to 15 VDC (or AC up to 5 kHz)
- Isolation Against Fluid: >5,000 V
- Operating Temperature: 15° to 40°C
- Storage Temperature: -25° to 70°C
- Volume Displacement: <0.04 mm3 /100 mmHg
- Output Impedance: 365 Ω ±1%
- Frequency Response: >1 kHz
- Cable Length: 3 m (9.8 ft)
- Certifications: CE
