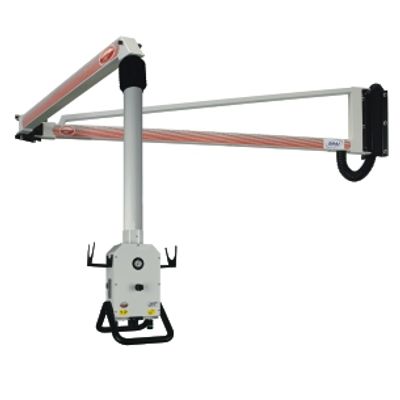

Cav Braccio - Model 35 BIS -Articulated Arm
The articulated arm 35Bis is a multifunctional system designed to distribute electrical power, compressed air and extraction directly to the operating area. Thanks to its robust construction in steel painted with epoxy enamel, it is a reliable solution for integration into professional extraction and supply systems in industrial sectors. The supporting tube has a rectangular section of 100x80 mm with a thickness of 2 mm, guaranteeing mechanical strength and stability. This arm is only available in 5 m length and can house only the SR Monoposto suspended service control unit.
Operating advantages
- Integrated distribution of energy, air and extraction in a single structure
- Simple wall installation via fixing hinge and accessory kit included
- Solid, epoxy powder-coated structure, durable and resistant to external influences
- Workspace optimisation, thanks to ceiling suspension
Applications and sectors of use
The 35Bis arm is an ideal solution for highly specialised work environments, where a single point of service distribution is required, such as:
- Automotive body shops and workshops, in machining and finishing stations
- Shipyards, for machining fibreglass hulls and components
- Wood industry, for cutting, sanding or painting stations
- Composite sectors, such as carbon fibre and fibreglass, where compact and integrated technical support is needed
Technical notes
The arm must be installed at a height of 3 metres under the plate. If installation at a different height is required, this must be specified when ordering, also indicating the height of the room. The SR Monoposto service control unit is supplied disassembled and must be installed separately on the arm.
