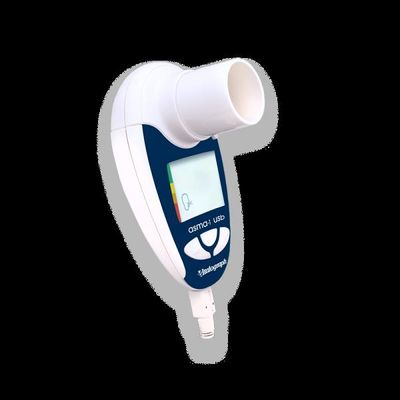

Vitalograph - Model asma-1 USB -Asthma Monitor

FromVitalograph Inc

SHARE

Ideal for monitoring PEF and FEV1 at home, work, in clinical trials, in primary or secondary care. The Vitalograph asma-1™ is a lightweight home use electronic respiratory monitor that measures PEF and FEV1. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards. Links easily to other devices by USB for reporting. Measures FEV1 and PEF. Displays % of personal best FEV1. Electronic record – no need for record cards. Set unique ‘personal best’ zones for test subjects. Automatically stores best values in a test session. Quality of blow indicator. 600 test memory. Suitable for use with Bacterial Viral Filters (BVF™). Compliant with: ATS/ERS 2019 and ISO 23747 / 26782 / 13485. Large, easy to read display.

Most popular related searches

respiratory monitor

respiratory monitoring

asthma monitoring

healthcare monitoring

Includes Vitalograph Reports to generate PDF reports to PC with:

Information presented in tables and graphs.
Customizable report headers.
Ability to add comments to the report.
Subject ID and name fields.
Age, height, gender, and weight fields optional.

One of our 4000 Series of respiratory monitors and screeners, the asma-1 comes with:

Pouch
Instructions for use
USB cable
2 x AAA Batteries
Plastic mouthpiece for single patient use
Vitalograph Reports Software

Respiratory Monitor asma-1 USB

Model: 4000

Dimensions: 109mm (length) x 63mm (width) x 42mm (height)

Accuracy: Better than ± 3% (FEV1), ± 10% (PEF)

Flow Detection Principal: Stator rotor

Back Pressure: Less than 0.15kPa/L/second @ 14L/s

Measurement Range: PEF: 25 – 840 L/min BTPS FEV1: 0 – 9.99 L BTPS

Maximum Test Duration: 1 second

Quality Check: Time to Peak Flow >120ms or a cough detected in the first second

Power Supply: 3V (2 x 1.5V AAA batteries)

Battery Life: 3 months of use, 3 tests per day

Performance Standards & Guidelines: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009

Communications: USB2.0/3.0

PC Requirements: Windows® 7, Windows® 8 or Windows® 10

Auto Power Down Time: 2 minutes
