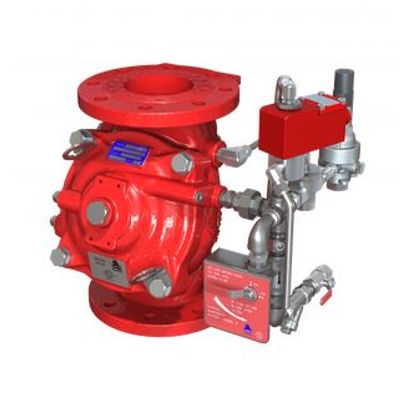

Bermad - Model FP-400Y-3DC - Electric Pressure Control On-Off Deluge Valve
The BERMAD model 400Y-3DC is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-3DC is activated by a 3-way solenoid valve by which opening and closing of the deluge valve may be controlled remotely. An integrated pressure reducing pilot ensures a precise and stable pre-set downstream water pressure. The 400Y-3DC is ideal for open-nozzle systems with a high pressure water supply and is available with electric components to suit any hazardous location. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.
A typical installation of the BERMAD model 400Y-3DC features actuation via a hydraulic relay valve and three-way solenoid valve, triggered by a signal from a fire & gas control system or an on-site emergency pushbutton.
When open, and fitted with a limit switch the valve can send a feedback signal to a remote valve
position monitoring system.
A pressure reducing pilot valve integrated in the control trim ensures a precise and stable pre-set downstream water pressure.
- Remote control water spray systems
- Foam applications
- Corrosive water supplies
- High pressure water supply
Safety and reliability
- Timeproven, simple, failsafe actuation
- Singlepiece, rugged, elastomeric diaphragm seal – VRSD technology
- Obstaclefree, uninterrupted flow path
- No mechanical moving parts
- Shuts off on remote command
- Ensures precise, stable downstream water pressure
- Valve position limit switches (optional)
Designed for fire protection
- Facetoface length standardized to ISO 5752, EN 5581
- Meets the requirements of the industry standards
Quick and easy maintenance
- Inline serviceable
- Fast and easy cover removal
- Swivel mounted drain valves*
- * not including 1½” & 2” valves
