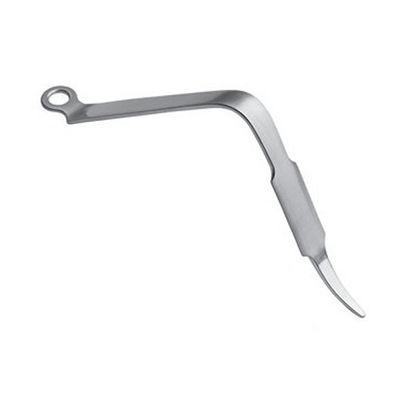

Innomed - Bent Hohmann Retractors - Narrow
FromInnomed, Inc.
Useful for retracting tissues at the margins of the joint. Modular weights can be used to help hold the retractor in place. The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.
7110 [Narrow]
- Overall Length: 9.75" (23,8cm)
- Handle Length: 7" (17,8cm)
- Blade Width: 19mm
- Depth from Bend: 4.75" (12,1cm)
7110-R [OrthoLucent™ Narrow]
- Overall Length: 9.75" (23,8cm)
- Handle Length: 7" (17,8cm)
- Blade Width: 19mm
- Depth from Bend: 4.75" (12,1cm)
7110-01 [Narrow with Extra Long Handle]
- Overall Length: 11.5" (29,2cm)
- Handle Length: 10" (25,4cm)
- Blade Width: 19mm
- Depth from Bend: 4.75" (12,1cm)
7111 [Narrow with Extra Grip Tip]
- Overall Length: 9.75" (23,8cm)
- Handle Length: 7" (17,8cm)
- Blade Width: 19mm
- Depth from Bend: 4.75" (12,1cm)
7115 [Short-tipped Narrow]
- Overall Length: 8.625" (21,9cm)
- Handle Length: 7" (17,8cm)
- Blade Width: 19mm
- Depth from Bend: 4.4" (11,2cm)
- Overall Length: 11" (27,9cm)
- Handle Length: 10" (25,4cm)
- Blade Width: 19mm
- Depth from Bend: 4.25" (10,8cm)
- Overall Length: 12.125” (31,1cm)
- Handle Length: 9.75” (24,8cm)
- Depth from Bend: 6.25” (15,9cm)
- Blade Width: 19mm
