VJX - Model IXS0405 - Beryllium Window Integrated X-ray Source

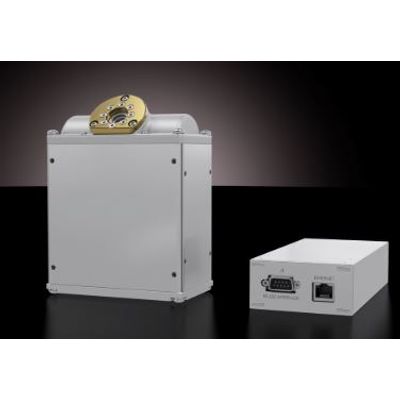

The IXS0405 is a Beryllium Window Integrated X-ray source combining an X-ray tube, a high voltage inverter, and a filament supply all within a compact design. With a maximum output of 40kV and 50W, it supports precision in analytical applications by delivering a stable and repeatable performance. Its focal spot size is 1.0 mm with a cone beam angle of 24°, ensuring precise targeting necessary for numerous applications, including material analysis, sorting, recycling, thickness gauging, and X-ray spectrometry. Lightweight with a generator weight of 2.4 kg and control box weight of 0.4 kg, it allows for optimal system integration without compromising form factor. The device operates within an input line range of 24VDC ±10% and achieves kV ripple less than 0.5% rms of the maximum output and kV stability better than 0.01% per ºC. This X-ray source, designed for robust qualitative and quantitative material analysis, is suitable for both laboratory and industrial applications, providing reliable and accurate results.
