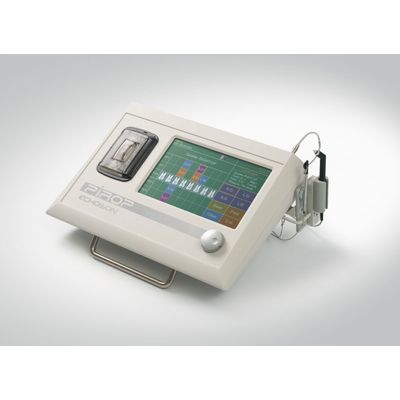

PIROP - Model G-scan -Biometric Scanner
State-of-the-art ultrasonic device PIROP in intraoral application for biometry soft tissue thickness in the periodontium (Gingival Thickness) – GUM/Gingiva – Periodontal Soft Tissue biometrics. PIROP allows to measure and monitor periodontal mucosa thickness in prophylaxis and periodontal treatment. Identification of a periodontal biotype has a fundamental meaning in optimal planning of preventive and therapeutic management mainly in periodontology, orthodontics, implantology and dental prosthetics. PIROP user’s interface based on touch screen technology makes operation easy and user-friendly. Undoubted advantages of using the Pirop device to measure the mucosa thickness are fast measurement, very high accuracy and a complete noninvasiveness during an ultrasonic examination.
- In-point, automatic measurement with automatic averaging and calculation of standard deviation
- Non-invasive thickness measurement via contact method
- A-scan and unique time-motion measurement modes for quick estimation of the thickness for the region of interest
- Sophisticated algorithm for the accuracy improvement
- High frequency measurement cycles
- Probe frequency 20 MHz
- Velocity range – 1400-2000 m/s
- Measurement range 0,25 ÷ 6 mm
- Axial resolution 0.01 mm (10 μm)
- Memory for 256 measuring points
- 8 predefined maps of periodontal areas – diagrams to select the dentition quadrant, tooth and measurement point
- 32 cross sections of the examined dento-gingival unit
- Power supply from external AC/DC power adapter:
- input:100-230V AC 50/60Hz / max 0.7A
- output: +12V DC / 2 A
- Power consumption (12 DC supply) – ca 12 W
Electrical safety standards
- Medical device Class IIa complies with MDD 93/42 EEC
- Scanner complies with requirements for Class II devices of EN/IEC 60601-1
- Dimensions (with built-in printer): 290 x 205 x 85 mm
- Weight (with built-in printer): 1.5 kg
- Touch Screen
- easy, ergonomic and user-friendly operation via displayed menu
- virtual keyboard for entering patient data, etc.
- Functional knob (gain control, review results etc.)
- Run / Freeze: Foot Switch or touch screen activated
- Automatic TGC adjustment
- Color LCD 7” display, 800×480 pixel
- Ten (10) user profiles
- Internal patient’s database
- Images archiving in internal memory and USB memory
- Internal thermal small printer
- Support for barcode reader
- Possibility of connecting an external alphanumeric keyboard
- Ready to use also in transport suitcase
- Trolley – option
- Composite-video output PAL
- Easy firmware upgrade via USB memory
It is possible to work with external USB printers ( HP LaserJet Pro M102 ) via USB connection. Depending on the PIROP operation mode various reports printout can be received on external printer. The reports contain all the information from the scan screen: user and patient data, exam data, measurements, image (screenshots) etc. It is also possible to print report from exam saved in the archive.
