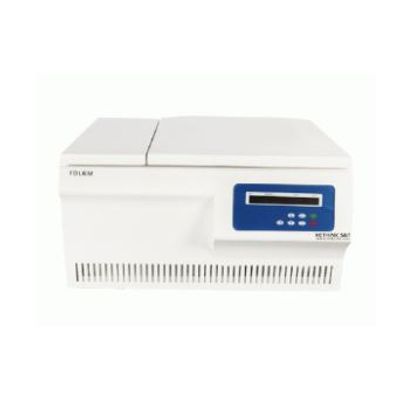

KETHINK - Model KT-TDL6M -Blood Bank Refrigerated Centrifuge
The KT-TDL6M Blood Bank Refrigerated Centrifuge is designed for the effective separation of blood components, primarily used in settings such as hospitals, clinical research laboratories, and biotechnology facilities. This centrifuge features microcomputer control and a brushless AC variable frequency motor, allowing for stable and quiet operation. The device supports separate setting and observation of the relative centrifugal force (RCF) value and rotation speed, which can be adjusted during operation without shutdown. It displays various operational parameters via an LED/LCD screen. Safety is prioritized with an electronic door locking mechanism preventing operation if the door is improperly closed. The device accommodates a variety of adapters and pipe racks, making it versatile for applications in radioimmunology, biopharmaceuticals, and blood product purification. The centrifuge also operates efficiently with rapid cooling capabilities, supporting a temperature range ideal for DNA, RNA, PCR, or antibody analysis.
TDL6M Programmable Logic Controlled (PLC) Blood Bank Refrigerated centrifuges are designed for separating blood components from whole blood. Blood Bank Refrigerated centrifuges are mainly used in biochemical products and scientific and technological research. Different substances can have different effects after being frozen. Can quickly separate blood components by freezing different substances.
- Max Speed: 6000rpm
- Max RCF: 5350xg
- Max Capacity: 4*800ml
- Speed Accuracy: ±10rpm
- Temperature Range: -20°C 〜+40°C
- Temperature Accuracy: 土1°C
- Timer Range: 1〜99min/9h59min
- Display: LED/LCD
- Motor: Brushless AC frequency conversion
- Power Supply: AC 220V 50HZ 10A
- Output Power: 1KW
- Noise: ≤60dB (A)
- Net Weight: 110kg
- Device Dimension: 600*700*450mm ( L* W* H )
Platelet,plasma, RBC and cryoprecipitate and it is ideal for Blood bank, Hospital ,clinical research laboratories, pharmaceutical industries, research laboratories, Biotechnology and vaccine manufacturing industry.
