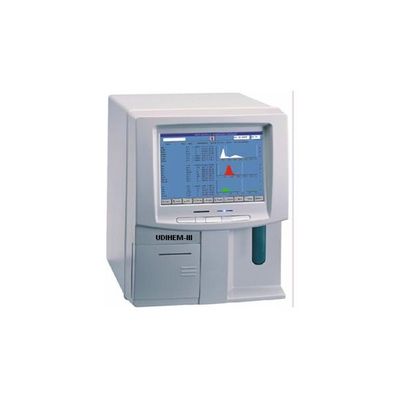

UDI - Model UDIHEM III -Blood Cell Counter
Aspiration Volume:Whole blood 18μL,Pre-diluted 20μL; Aperture diameter:WBC 100μm,RBC/PLT 68μm; Throughput:60 samples per hour; Data storage:More than 100,000 sample results with histograms; Alarms: Error messages.
Most popular related searches
- Parameters: WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%,RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR 3-part differentiation of WBC, 20 parameters and 3 histograms
- Principles of operation:WBC/RBC/PLT: Electrical Impedance HGB: Photoelectric colorimetry
- Display: 10.4 inches color LCD, Resolution 640 x 480
- Dimension: 330mm x 440mm x 500mm
- Power requirement: AC 110V/230V, 50/60Hz
- Input/Output: Support Rs232,USB port,
- Shortcut keys with normal operation
- Internal 57mm thermal printer,
- Parallel Port and USB for external printer
- Large color LCD display & Linux operation system
- Support USB data backup & system upgrade
- Excellent data management with mouse and keyboard
- High efficient self checking system, low maintenance
- Support LIS and HIS with HL7 protocol
- Collaborator of BIO-RADcontrol,target value available
