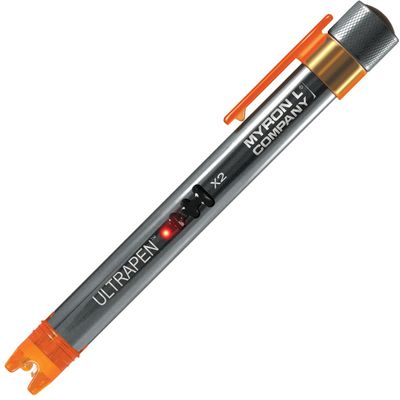

Myron L^®UltrapenX2 - Model PTBT4 -Bluetooth Enabled Free Chlorine Equivalent (FCE) & Temperature Pen

• Accuracy of up to ±0.3 ppm FC^E
• Calibration with pH and ORP Standard Solutions
• Automatic Temperature Compensation
• Measurement Storage with Time, Date and Location
• Export Stored Measurement Data Via Email
• Live or Hold Mode – User Selectable
• Proprietary Sensor Design
• Rugged Design with Aircraft Aluminum Body
• Durable, Epoxy Encapsulated Electronics
• Waterproof
• Powered by One N Type Battery (Included)

• PTBT4 Pocket Tester Pen
  • Battery Installed
• User Replaceable FC^E Sensor
  •  Installed
• Protective/Hydration Cap
• Scoop
• Pocket Clip
• ORP Electrode Cleaning Paper
• Quick Start Guide

Mode: Method of Measurement

• Hold (default): Once stabilized, the readings are captured then displayed.
• LIVE: Real-time readings are displayed continuously during measurement.

• System Requirements: Myron L® Company PTBTX2TM App: Apple iOS 10.0 or later; Android OS 7.0 or later.
• FCE ™ Free Chlorine Range: 0 – 10.0 ppm
• FCE ™ Free Chlorine Accuracy: < 5.00 ppm: ± 0.3 ppm; ≥ 5.00 ppm: ± 0.5 ppm
• FCE ™ Free Chlorine Resolution: 0.01 ppm
• Temperature Range: 0 – 71°C / 32 – 160°F
• Temperature Accuracy: ± 0.1ºC
• Temperature Resolution: 0.1ºC / 0.1ºF
• Power Consumption: Active Mode 30-140 mA Sleep Mode 2 µA
• Temperature Compensation: pH: Automatic to 25ºC
• ORP: Automatic In Calibration Mode From 15ºC to 30ºC
• Physical Dimensions: 17,15 cm L x 1,59 cm D or 6.75 in. L x .625 in. D
• Weight: 50.4 g / 1.78 oz. (without soaker cap and lanyard)
• Case Material: Anodized Aircraft Aluminum with Protective Coating
• Battery Type: One N type, Alkaline, 1.5 V
• Calibration Standard Solutions: PH4, PH7, PH10, ORP80, ORP260, ORP470
• Operating/Storage Temperature: 0 – 55ºC / 32 – 131ºF
• Enclosure Ratings: IP67 and NEMA6
• EN61236-1: 2006 – Annex A: 2008;Electrostatic discharge to case of instrument may cause PTBT4 to spontaneously power ON. In this case, the PTBT4 will power OFF after several seconds.

WARNING! These products can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm.

• Agriculture
• Hydroponics
• Aquaculture
• Pharmaceutical
• Boilers and Cooling Towers
• Horticulture
• Wastewater
• Food and Beverage
• Irrigation
• Reverse Osmosis
• Plus Many More!

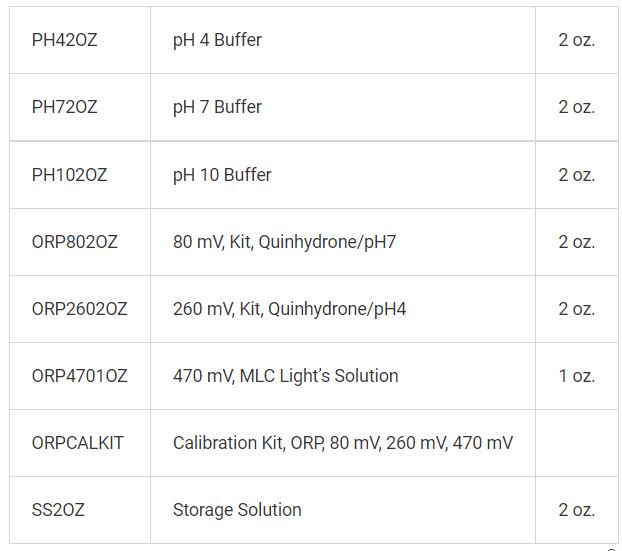

• Standard Solutions for Calibration:

The ULTRAPENx2TM PTBT4 requires pH4, pH7, and pH10 pH Buffer Solutions and 80 mV Quinhydrone, 260 mV Quinhydrone, or 470 mV MLC Light’s ORP Standard Solutions for wet calibration, and Sensor Storage Solution for proper storage.
