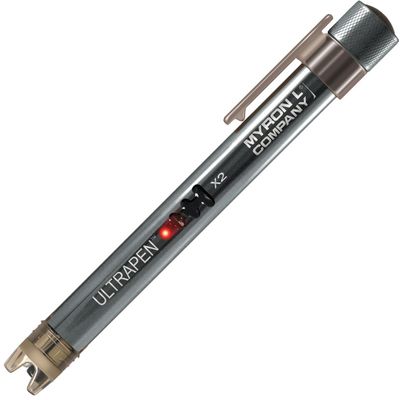

Myron L^®UltrapenX2 - Model PTBT6 -Bluetooth Enabled Nitrate & Temperature Pen

• Nitrate Concentration (ppm N or ppm NO₃-) or mV
• 1 and 2 Point Calibration Options
• Proprietary ISE Sensor Design
• Built-in Double Junction Reference Electrode
• Compatible with EPA Approved Standard Method 4500-NO₃-D
• Live or Hold Mode – User Selectable
• Measurement Storage with Time, Date and Location
• Export Stored Measurement Data Via Email
• Rugged Design with Aircraft Aluminum Body
• Durable, Epoxy Encapsulated Electronics
• Waterproof
• Powered by One N Type Battery (Included)

• PTBT6 Pocket Tester Pen
  • Battery Installed
• User Replaceable Nitrate Sensor
  • Installed
• 100 ppm NO₃-N Standard Solution – 2 oz.
• Ionic Strength Adjuster (ISA) – 2 oz.
• Graduated Cylinder with Cap – 2 ea.
• 100 µL Pipette – with Tip
• Protective Cap
• Pocket Clip
• Quick Start Guide

Mode: Method of Measurement

• Hold: Displays real-time readings until the LED turns solid ON, then displays final readings.
• LIVE:  Displays real-time readings continuously for up to 5 minutes.

Mode: Parameter Measured

• N: Display alternates between Nitrate as Nitrogen (NO3--N), and Temperature
• NO3: Display alternates between Nitrate (NO3-), and Temperature
• mV: Display alternates between millivolt (mV), and Temperature

• pH Range: 3-11 pH
• Time to Reading Stabilization: 10 – 180 seconds
• Power Consumption: Active Mode: 30 – 140 mA, Sleep Mode: 2 µA
• Physical Dimensions: 17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D
• Weight: 54 g or 1.94 oz.
• Case Material: Anodized Aircraft Aluminum with Protective Coating
• Battery Type: N type, Alkaline 1.5 V
• Calibration Standard Solutions: 1, 10, 100, or 1000 ppm NO3–N
• Operating/Storage Temperature: 0-40°C / 32-104°F 2
• Enclosure Ratings: IP67 and NEMA 6

EN61236-1: 2006 – Annex A: 2008; Electrostatic discharge to case of instrument may cause PTBT6 to spontaneously power ON. In this case, the PTBT6 will power OFF after several seconds.

WARNING! These products can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm.

1 Accuracy of measuring standard solutions after Temperature Controlled, 2-Point Calibration with one order of concentration difference.
2 For extended life of the sensor, store the pen in a cool location (5-25 °C)

Standard Solutions for Calibration:

The ULTRAPENx2™ PTBT6 can be calibrated with 1, 10, 100, or 1000 ppm NO₃–N Calibration Solution

Order Models:

• N1SOL – 1 ppm NO₃ -N (Nitrate as Nitrogen) Standard Solution
• N10SOL – 10 ppm NO₃–N (Nitrate as Nitrogen) Standard Solution
• N100SOL – 100 ppm NO₃–N (Nitrate as Nitrogen) Standard Solution
• N1000SOL – 1000 ppm NO₃–N (Nitrate as Nitrogen) Standard Solution

• Ionic Strength Adjuster

Order Model: NISASOL

• Nitrate Interference Suppression Buffer:

Order Model: NISBSOL

• Replacement Nitrate Sensor:

Order Model: RPT6
