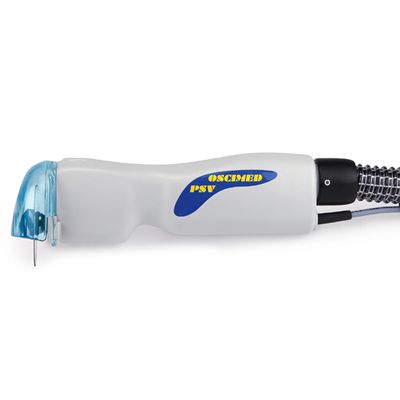

Oscimed - Model PSV -Cast/Plaster Cutter Saw
The OSCIMED PSV cast saw was designed for easy use, specifically for use with a vacuum cleaner. The rear mounting of the vacuum cleaner hose guarantees a perfect vision of the work area and ease of handling even for casts that are difficult to access. Its ergonomic design includes a grip area with reduced circumference. Its light weight allows single-handed use and the sensor switch is very easy to access. The instant blade lock nut without any tool and the adjustable guide and cutting depth gauge.
- Stainless steel blades for plaster of Paris..
- Hardened stainless steel blades for synthetic casts (fiber glass)
- Hardened stainless steel blades for synthetic casts with very hard titan coating (Tin).
- "non-stick" blades with PTFE coating.
The PSV II without the air duct (OSC 400) for use without vacuum cleaner is a VERY smart saw with one of the smallest handling circumference. This model is the new reference on the market. The PSV II is perfect for children plaster rooms or hand surgeons.
The PSV II with air duct (OSC 400V) is made for use with a vacuum cleaner. Our engineers have designed this model to minimize the handling size and greatly improve the freedom of movements.
The instant blade lock nut without any tool and the adjustable guide and cutting depth gauge.
A wide range of saw blades is available for all kind of casts:
- Stainless steel blades for plaster of Paris..
- Hardened stainless steel blades for synthetic casts (fiber glass)
- Hardened stainless steel blades for synthetic casts with very hard titan coating (Tin).
- "non-stick" blades with PTFE coating.
This saw is delivered with our special anti-noise blade BS-65-LN.

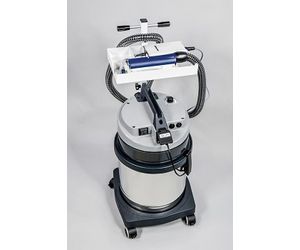

4 levels of filtration, adjustable power and automatic start
Vacuum cleaner with adjustable suction power, mounted on four wheels. Its robust construction and power offer support for the saw. The HEPA-compliant fi lters provide a standard filtration of 99.97 % of particles of 0.3 microns. A power outlet allows the connection of the saw. The vacuum cleaner starts automatically upon activation of the saw and stops a few seconds after the saw stops.
- Power : Adjustable from 300 to 1000 Watts
- Noise level : 60-70 dB
- Suction : 1800 mm water column, 40 litres / sec.
- Length of suction hose : 2.5 meters.
- Capacity of stainless steel tank : 20 litres.
- Weight : 12 kg.
