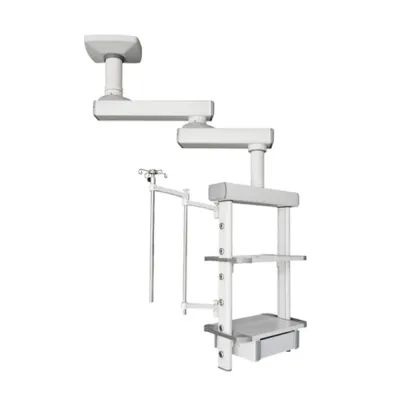

Expert Medical - Model EM-33 -Cavity Mirror Pendant for Endoscopic Surgery
The Cavity Mirror Pendant EM-33 is an advanced medical pendant designed for integration into operating rooms equipped for endoscopic surgery. It features a ceiling-suspension mode for high bearing capacity, and both the tower body and cross arm have a 340-degree rotation capability with an integrated brake system to ensure stability and precision during surgical procedures. The multi-layer equipment platform is designed to support medical gas, power, and network output terminals, catering to the detailed demands of modern surgical environments. Additionally, the pendant offers ease of operation through an electric lifting mechanism, facilitating quick adjustments in height. Unique interface designs with multiple colors and shapes prevent incorrect connections. The system is engineered for durability with a design tested for over 20,000 plug and unplug cycles and employs a secondary seal mechanism with three operational states to maintain air control integrity. This pendant is especially suited for surgeries in general, urology, gynecology, and thoracic fields.
The cavity mirror tower adopts ceiling suspension mode, with high bearing capacity. The tower body and cross arm can rotate 340 degrees, and is equipped with brake to prevent drift. The tower body is equipped with multi-layer equipment platform, medical gas, power supply, network output terminals, etc
Learn about Cavity Mirror Tower：
With the development of minimally invasive technology, endoscopic technology has been widely used in general surgery, urology, gynecology, thoracic surgery and other surgical treatment fields. As the carrier platform of endoscopic therapy equipment, the endoscopic tower provides an all-round service for surgery. The cavity mirror tower adopts ceiling suspension mode with high bearing capacity. The tower body and cross arm can rotate 340 degrees, and is equipped with brake to prevent drift. The tower body is equipped with multi-layer equipment platform and medical gas, power, network output terminals etc; The tower height can be controlled by electric lifting, which is easy to operate and use.
Cavity Mirror Tower Application：
Operating room applied to general surgery, urology, gynecology, thoracic surgery and other surgical treatment fields.
- Working power supply: AC220V, 50Hz;
- Moving range (radius) of cross arm: 700-1100mm (can be configured according to the requirements of the hospital)
- Horizontal rotation angle: 0~340 °, the cross arm and the terminal box can rotate horizontally respectively or simultaneously;
- Net load ≤ 150kg;
- Instrument platform: 2 layers (adjustable height) 590 ㎜ * 460 ㎜ * 25 mm, round corner anti-collision design
- Gas interface configuration (2 oxygen, 2 negative pressure suction, 2 compressed air):
- The interface has different colors and shapes, and has the function of preventing wrong connection;
- More than 20000 times of plugging and unplugging; c. The secondary seal is adopted, with three states (on, off and off), and can be maintained with air;
- Power sockets: 10, 220V, 10A;
- Equipotential grounding terminals: 2; Network interface: 1, communication interface: 1;
- 1 stainless steel adjustable infusion pole frame;
- 1 stainless steel adjustable syringe pump frame;
- Drawer: 1;
- The main material is high-strength aluminum alloy profile;
- Electrostatic spraying is adopted for surface treatment;
- Ceiling mounted, stable and firm.
