Kirkstall - Model QV900 -Cell Culture Chamber
FromKirkstall Ltd.

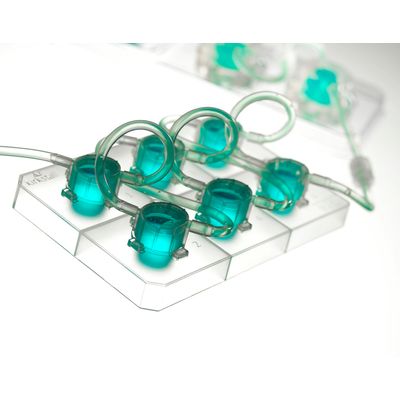

The QV900 6-chamber optical tray provides a compact, disposable unit ideal for high-content experiments and industrial use. Each QV900 tray consists of 6 chambers, each with individual lids and connectors, in the same footprint as a standard well plate, creating a compact unit which allows a range of configuration options. The tray is formed of high-quality optically-clear plastic, allowing for live cell imaging and microscopy of cultures in situ within the plate.
Most popular related searches
Users of the QV900 can expect to profit from a number of key benefits associate with the QV900 cell culture chambers:
- Continuous perfusion of media
- Optically clear chambers for live cell imaging
- Compact tray with standard footprint
- Modular chamber connections
- Gas-impermeable chambers
- Low non-specific binding
- Chamber width: 15 mm internal
- Chamber depth: 22 mm
- Materials: Chamber:
- Base: Altuglas SG7 – Acrylic Resin
- Lids: Melifex M8706 – Styrene TEP
- Tubing: Tygon/PTFE & FEP
- Luers and reservoir bottle: Polypropylene
- Overall dimensions: 23 mm height x 37 mm diameter
- Diameter of tubing: Inlet: 1/16” ID
- Outlet: 3/32” ID
- Volume of chamber: 4 ml
The QV900 6-chamber optical tray provides an ideal research environment for:
- Live Cell Imaging
- Repeat Dosage
- Long Term Exposure
- Hypoxic Conditions
