Tailin - Cell Therapy Isolator

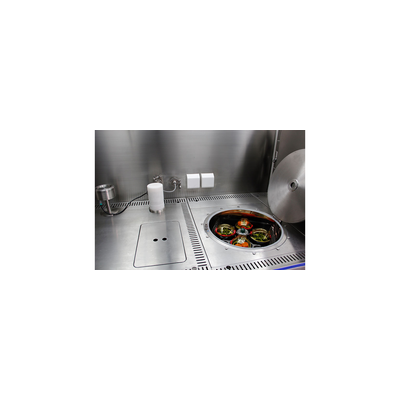

The cell therapy isolator integrates cell culture-related functional components such as centrifuges and CO2 incubators to complete cell culture-related operations in a closed aseptic environment to meet the GMP production requirements of cell products.
Most popular related searches
- Vertical laminar flow;
- Built-in Vaporized Hydrogen Peroxide (VHPS) Generator for thorough decontamination;
- Adopts dry VHPS technology to avoid condensation;
- Unique concentration dynamiclly control technology to avoid the VHPS concentration is too high or too low;
- Pressure control technology to minimize the risk of VHPS penerating in the package;
- Temperature control during the decontamination process to minimize the high temperature affecting the cell viability;
- The chamber cleanliness is monitored by the air sampler and particle counter;
- Movable cell incubator can avoid the cross contamination;
- Automatic medium replacement modular can improve the efficiency and low the labor cost;
- Modular design which is easily installed in class D background ;
- Validation service: DQ,IQ,OQ,PQ,VHPS penetration test.
- Cleanliness Class: ISO5 ClassA
- HEPA Filters:H14, HEPA≥99.995%,@0.3um
- Bio-decontamination time: approx. 2.5 hours,reach 6-log SAL
- illumination: >500lux
- Power Supply: 380V 50Hz
- Pressure: 20~80Pa adjustable
- Overall Dimensions (LxWxH):5500mm×1205mm×2600mm(Could be customoized)
- Structure: SUS 316L and 15mm tempered glass
- Incubator temperature: 37?±0.2
- Temperature resolution: 0.1?
- Temperature fluctuation: ±0.2?
- CO2 concentration: 5%
- Cold storage temperature: 2-8?
- Rewarming temperature: 37?
- Medium replacement speed: 5min/dish
- Noise≤65dB(A)
- Designed for the users who require sterile conditions for R&D or pilot production of cell & gene products.
