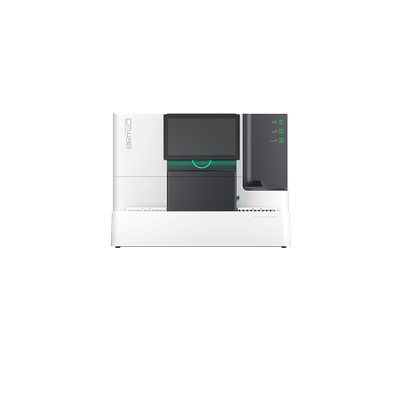

Getein - Model CM-480 -Clinical Chemistry Analyzer

Optional ISE module: 600 T/H

105 cuvettes: quartz glass or plastic

Direct testing with whole blood samples; automatic on-board hemolysis and analysis

No manual pre-treatment required, ensuring higher accuracy

Simplified operation and improved testing efficiency

IFCC and NGSP standardization

Constant-temperature air bath with rapid heating reduces instrument warm-up time and requires no maintenance

The temperature control system utilizes dry heating to maintain the reaction solution in the cuvette at 37 ?

Integrated with the MAGICL 6000i to form the Metis 600, the smallest clinical chemistry and immunochemistry modular system on the market—maximizing space savings while also shortening turnaround time

Cross-contamination rate < 0.01%

Water consumption: 15 L/H and 2-step washing solution + 4-step purified water washing

Intelligent 3D full-needle washing technology and ultrasonic cleaning system

Automatic wash solution dilution

Minimum reaction volume: 100 μL

Highly-precise injector, internally and externally polished sampling probes, liquid level detection and bubble detection

LED light source with high stability, long lifespan optical system with diffraction grating and 16 wavelengths

• Test Principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
• Test Methods: Rate method, end point method, fixed-time method
• Dimensions: 960 mm (L) * 770 mm (W) * 655 mm (H)
• Sample Positions: 50 positions
• Reagent Positions: 80 positions
• Sample Types: Serum, plasma, whole blood, urine, and  cerebrospinal liquid samples
• Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes
• Water Consumption: No more than 15 L purified water per hour
• Minimum Reaction Volume: 100μL
