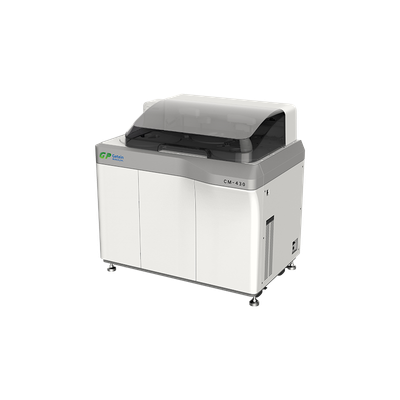

Getein - Model CM-430 -Clinical Chemistry Analyzer

One stirrer less — Upgraded mechanics with reduced maintenance

Constant throughput: 400 T/H, optional ISE module with 400 T/H

90 sample positions, 80 reagent positions

Direct heating system enables faster heating and decreases pre-heating time

Thermostatic system by dry heating keeps reaction solution in cuvettes at (37.0±0.2)?

Internally and externally polished sampling probes, high-precision

Liquid volume tracking and level detection

Bubble detection and probe-clot (clogging) detection

Water-quality monitoring module (Optional) and Built-in degassing unit

Optical system with diffraction grating and 16 wavelengths

Glass reaction cuvettes with permanent use

Reagents can be loaded on-board during test

Peltier system provides a longer maintenance period to reduce repair probability

Whole probe stereo cleaning technology with cross-contamination rate<0.01%

Anti-overflow function prevents liquid spillage

• Test Principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
• Test Methods: Rate method, end point method, fixed-time method
• Dimensions: 1160 mm (L) * 790 mm (W) * 1140 mm (H)
• Gross Weight: 300 kg
• Sample Positions: 90 positions
• Reagent Positions: 80 positions
• Sample Types: Serum, plasma, whole blood, urine, and  cerebrospinal liquid samples
• Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes
• Water Consumption: No more than 15 L purified water per hour
• Calibration: multi-point calibration curve with up to 7 points
• Dilution: automatic pre-dilution
• Minimum Reaction Volume: 100μL
• Minimum Sampling Volume: 1.5μL
