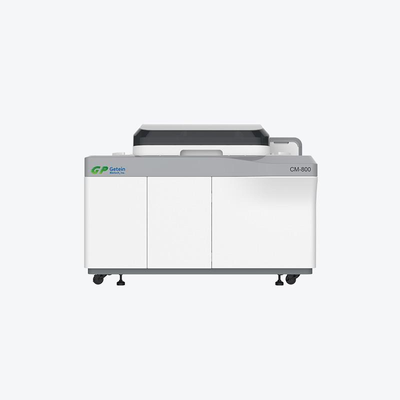

Getein - Model CM-800 -Clinical Chemistry Analyzer
CM-800 is a comprehensive clinical chemistry analyzer with the throughput of 800 T/H. Equipping with dry heating thermostatic system, accurate sampling system and intelligent online loading system, faster testing speed, more precise results and enhanced intelligent operating experience can be realized.
Constant throughput: 800 T/H, optional ISE module with 400 T/H
137 samples positions, 114 reagent positions
Direct heating system enables faster heating and decreases pre-heating time
Thermostatic system by dry heating keeps reaction solution in cuvettes at (37.0±0.2)?
Triple mix bars with two-stage cleaning, avoiding stirring rod contamination
Real-time monitoring of stirring speed
Internally and externally polished sampling probes, high-precision
Liquid volume tracking and level detection
Reagents can be loaded on-board during test
Whole probe stereo cleaning technology with cross-contamination rate<0.01%
Anti-overflow function prevents liquid spillage
Optical system with diffraction grating and 16 wavelengths
Glass reaction cuvettes with permanent use (optional)
- Test Principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
- Test Methods: Rate method, end point method, fixed-time method
- Dimensions: 1640 mm (L) * 940 mm (W) * 1215 mm (H)
- Gross Weight: 500 kg
- Sample Positions: 137 positions
- Reagent Positions: 114 positions
- Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples
- Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes
- Water Consumption: No more than 26 L purified water per hour
- Dilution: automatic pre-dilution
- Minimum Reaction Volume: 100μL
- Minimum Sampling Volume: 1.5μL
