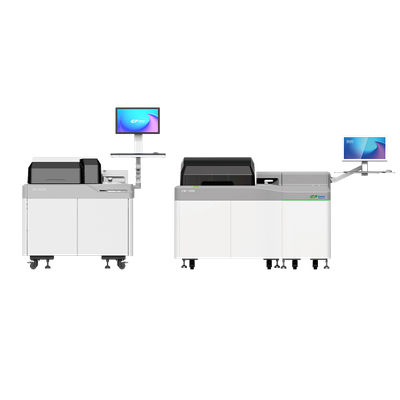

Getein - Model CM-1000 -Clinical Chemistry Analyzer

Smaller footprint without compromising speed

50 sample positions and support STAT samples

Constant throughput: 1000 T/H, optional ISE module with 400 T/H

Internally and externally polished sampling probes, high precision

Liquid volume tracking and level detection

103 reagent positions, simultaneous testing of up to (61 + 4 ISE) different items

270 quartz glass cuvettes, replaceable individually

3 sample tracks: emergency loading, regular loading and sample returning

Independent emergency track, emergency samples in priority

Double-row cleaning design

8-step washing, more thorough cleaning

• Test Principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
• Test Methods: Rate method, end point method, fixed-time method
• Dimensions: 1100 mm (L) * 930 mm (W) * 1200 mm (H)
• Gross Weight: 400 kg
• Sample Positions: 190 positions
• Reagent Positions: 103 positions
• Sample Types: Serum, plasma, whole blood, urine, and  cerebrospinal liquid samples
• Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes
• Water Consumption: No more than 40 L purified water per hour
• Minimum Reaction Volume: 100μL
• Minimum Sampling Volume: 1.5μL
