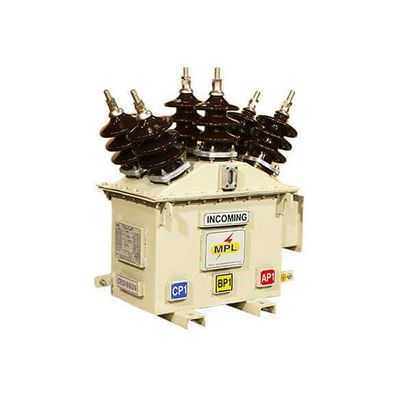

Combined CT-VT Metering Units

• Combined CT-VT Metering Units and Cubicles are used for metering at high voltage side of the distribution system.
• Combined CT-VT Metering Units are Oil Immersed type whereas Combined CT-VT Metering Cubicles are Dry type in construction.
• Combined CT-VT Metering Units consist of 03 nos. single phase polyester / paper insulated CTs and 01 no. three phase polyester / paper insulated VT enclosed inside a metal tank filled with Transformer oil.
• Combined CT-VT Metering Cubicles consist of 03 nos. single phase resin cast CTs and 01 no. three phase resin cast VT enclosed inside a metal cubicle in the lower compartment. The three phase energy meter is installed in the upper compartment.

• Porcelain Bushings
• Primary & Secondary Terminals
• Terminal Connectors
• Oil Level Indicator
• Nitrogen Filling Valve
• Pressure Release Device
• Surge Arresters with mounting brackets (optional)
• Energy Meter (optional)
• Meter Box (optional)

System Voltage: Upto 33 KV
Type: Oil Immersed / Dry Type
Rated Frequency: 50 Hz
Accuracy Class (CT): 0.2s 0.2, 0.5s, 0.5, 1
Rated Burden (CT): 2.5 VA to 30 VA
Accuracy Class (VT): 0.2, 0.5, 1
Rated Burden (VT): 10 VA to 50 VA
Primary Current: Upto1000 A
Secondary Current: 1 A or 5 A
Primary Voltage: Upto 33 KV
Secondary Voltage: 110 V
Applicable Standard: IS 16227, 2705, 3156 &IEC 61869, 60044
