OrbusNeich Medical Company Ltd.

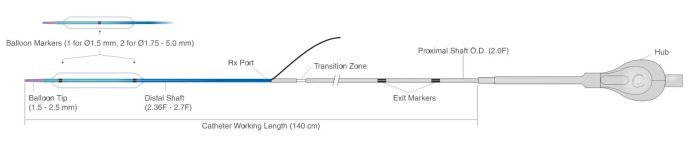

Sapphire - Model NC24 -Coronary Dilatation Catheter
Engineered for true controlled compliance, high pressure tolerance and re-crossability.
Most popular related searches
- Catheter Type: Rapid Exchange
- Proximal Shaft: 2.1F
- Distal Shaft: 2.36F – 2.7F (Ø1.5 mm – 5.0 mm)
- Catheter Working Length: 140 cm
- Tip Length: 1.5 mm (Ø1.5 mm -1.75 mm); 2.0 mm (Ø2.0 mm – 3.0 mm); 2.5 mm (Ø3.25 mm – 5.0 mm)
- Marker Bands: 1 (Ø1.5 mm); 2 (Ø1.75 mm – 5.0 mm)
- Crossing Profile (Ø3.0 mm): 0.0347”
- Coating: Hydrophilic (tip to guidewire exit port); Hydrophobic (guidewire lumen)
- Nominal Pressure (NOM): 14 atma
- Rated Burst Pressure (RBP): 24 atm (Ø1.5 mm – 3.5 mm); 22 atm (Ø3.75 mm – 4.0 mm); 20 atm (Ø4.5 mm – 5.0 mm)
- Balloon Material: Nylon
- Balloon Folds: 2 (Ø1.5 mm – 3.5 mm); 3 (Ø3.75 mm – 4.0 mm); 5 (Ø4.5 mm – 5.0 mm)
- Balloon Diameters (mm): 1.5, 1.75, 2.0, 2.25, 2.5, 2.75, 2.875, 3.0, 3.25, 3.5, 3.75, 4.0, 4.5, 5.0
- Balloon Lengths (mm): 8, 10, 12, 15, 18, 22, 26 (only for Ø2.5, 2.75, 3.0-5.0)
- Guiding Catheter Compatibility: 5F (Ø1.5 mm – 4.00 mm); 6F (Ø4.5 mm – 5.0 mm)
