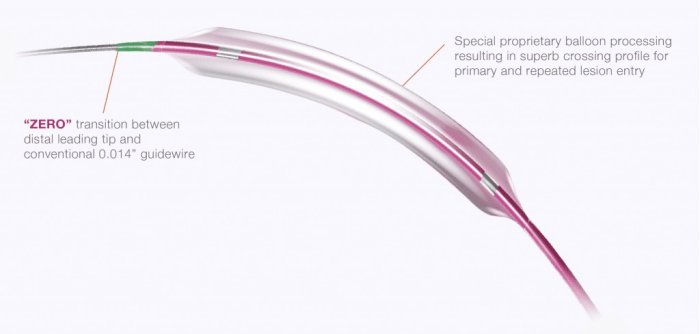

Sapphire - Model II NC -Coronary Dilatation Catheter
True controlled compliance and ultimate crossability for a Wide Spectrum of Vessels.
Most popular related searches
- Catheter Type: Rapid Exchange
- Proximal Shaft Diameter: 2.0F
- Distal Shaft Diameter: 2.36F (Ø1.75 mm – 2.0 mm); 2.55F (Ø2.25 mm – 3.5 mm); 2.6F (Ø3.75 mm – 5.0 mm)
- Catheter Working Length: 140 cm
- Leading Tip Length: 1.5 mm (Ø1.75 mm); 2.0 mm (Ø2.0 mm – 3.0 mm); 2.5 mm (Ø3.25 mm – 5.0mm)
- Balloon Material: Nylon
- Balloon Folds: 3 (Ø1.75 mm – 3.0 mm); 5 (Ø3.25 mm – 5. 0 mm)
- Compliance: Controlled-compliant
- Crossing Profile: 0.0336” (Ø3.0 mm)
- Marker Bands: 2
- Coating: Hydrophilic (distal tip to guidewire exit port), Hydrophobic (guidewire lumen)
- Nominal Pressure: 12 atm
- Rated Burst Pressure: 20 atm (Ø1.75 mm – 4.0 mm); 18 atm (Ø4.5 mm – 5.0 mm)
- Guiding Catheter Compatibility: 5F (1.75 mm – 4.0 mm), 6F (4.5 mm – 5.0 mm)
