OrbusNeich Medical Company Ltd.
Products
Sapphire - Model II PRO 1.0 mm - ...

Sapphire - Model II PRO 1.0 mm -Coronary Dilatation Catheter

Cross with Confidence Every Time. Nylon Balloon Material: More robust balloon material for a higher rated burst pressure. Single Material Tip Tailored for CTO: The small size Sapphire II PRO has a single-material tip for a simpler construction. The shorter tip facilitate better tracking. And the low tip entry profile is engineered for very tight lesions.

Most popular related searches

hydrophilic guidewire

pressure catheter

Hydro-X Hydrophilic coating on distal shaft for added crossability
IMPROVES CROSSABILITY

Hydro-X hydrophilic coating is a water-absorbing, very slippery coating that reduces friction during lesion crossing
Invio hydrophobic coating is a water-repelling, slippery coating that reduces guidewire friction
IMPROVES TRACKABILITY

Catheter Type: Rapid Exchange
Proximal Shaft Diameter: 1.9F
Distal Shaft Diameter: 2.36F
Catheter Working Length: 140 cm
Leading Tip Length: 1.5 mm
Balloon Material: Nylon
Balloon Folds: 2 (Ø1.0 mm); 3 (Ø1.25 mm – 1.5 mm)
Compliance: Semi-compliant
Crossing Profile: 0.0216”
Marker Bands: 1
Coating: Hydrophilic (distal tip to guidewire exit marker); Hydrophobic (guidewire lumen)
Nominal Pressure: 6 atm
Rated Burst Pressure: 16 atm
Guiding Catheter Compatibility: 5F

Sapphire - Model II PRO 1.0 mm -Coronary Dilatation Catheter

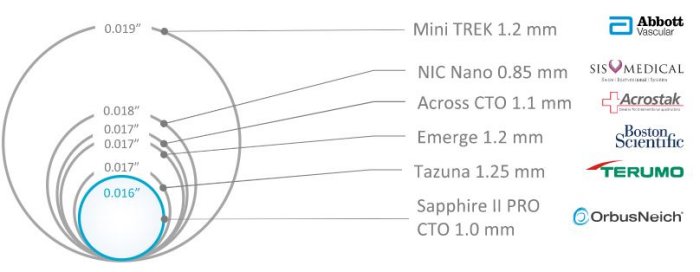

Tip entry profile

Lubricious Coating

Technical Specifications
