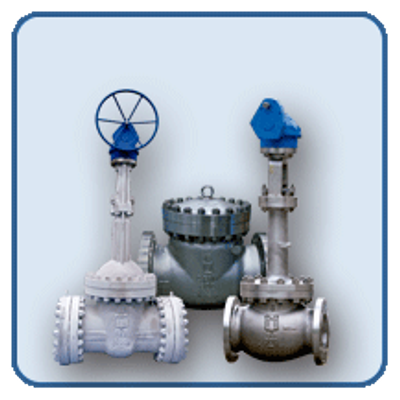

Valvospain - Cryogenic Gate, Globe & Check Valves
Characteristics: Construction: Extended Bolted Bonnet. Gate: API 600, ASME B16.34, BS 6364. Extended Bolted Bonnet. OS&Y, Rising Stem. Flexible Wedge. Globe: BS1873, ASME B16.34, BS 6364. Extended Bolted Bonnet. OS&Y, Rising Stem. “T” Body Type. Option: Globe, Stop-Check. Check: BS1868, ASME B16.34. Bolted Cover. Swing Check or Piston Check. Swing Check: Disc with internal Pin. Optional outside lever and counter-weight. Ends: Flanged (RF,FF,RTJ) or Butt Weld (BW). Operación: Manual (Lever o gearbox), Actuated (Electric, pneumatic o hydraulic).
Most popular related searches
Manufacturing Standars:
- Design:
- APIU 600,BS 1873, BS 1868,
- ASME B16.34, BS 6364
- Pressure-Temp. Ratting.: ASME B16.34
- Face ti Face dimension: ASME B16.10
- Flanged Ends:
- ASME B16.5 (hasta 24”)
- ASME B16.47 (por encima de 26”)
- Butt Weld ends: ASME B16.25
- Pressure Test: API 598
- Cryogenic Test: BS 6364 (-196ºC)
Manufacturing Range:
- Ratings: from 150 Lbs up to 2.500 Lbs
- sizes: 1/2” up to 60”
