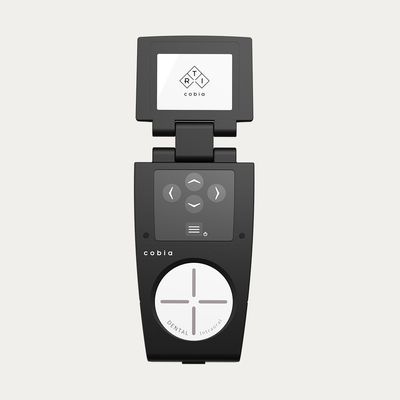

Cobia - Dental X-ray QA Meter
Fast and easy Intraoral and CBCT system testing. Choose Cobia DENTAL X-ray QA meter for Intraoral and CBCT measurements. A simple-to-use meter for a routine inspection of Intraoral and CBCT X-ray equipment in dental clinics. Especially suitable for acceptance tests, constancy tests, and routine quality control.
Cobia DENTAL - general specifications
- Weight (approx.): 280 g
- Size: 140 × 78 × 28 mm³
- Power source: Int. battery / Ext. power supply
- Battery life: 10 – 20 hours
- Display: Color, 320 x 240 pixel
- Warranty: Two years
- Extended Warranty: Up to ten years
- Calibration Cycle: Two years
- Standard: Complies with relevant parts of the standards IEC 61674 and IEC 61676 for dosimetric instruments
- PTB Approval: DE-15-M-PTB-0005
Cobia DENTAL - measuring parameters
- Tube volt.: 45 – 125 kVp (±2 %)
- Time: 0,33 ms – 9999 s (±1 % or ±0.33 ms). 3 – 9999 pulses
- Dose: 70 nGy–1700 Gy (±5 %). 8 μR – 200 kR (±5 %)
- Dose Rate: 2.5 µGy/s – 175 mGy/s (±5 % or ±25 nGy/s). 0.3 mR/s – 20 R/s (±5 % or ±2.5 μR/s). 17 mR/min – 1.2kR/min (±5 % or ±0.15 mR/min.
- HVL: 1.2 – 14 mm Al (±10 % or ±0.2 mm)
- Total Filtration: 1.0 – 90 mm Al (±10 % or ±0.3 mm Al)
- Pulse frequency: 1/6 – 260 Hz (±1 %)
- Dose/Pulse: 10 nGy/p – 600mGy/p (±5 %).
- 1.1 μR/p – 66 R/p (±5 %)
- Min. Exp. Time: 0.1 ms
- Sensitivity: 0.2 mA @ 50 kV, 50 cm (3mm Al)
- Auto-Compensation: All dose parameters are automatically compensated for using measured kVp and TF over their specified ranges.
- Easy to position with no position dependence
- Large, rotatable display
- Log/History function
- Pulsed radiation analysis
- Full Auto range for kV, TF, and Sensitivity
- USB communication
- Solid-state detectors = no need to compensate for temperature & pressure
- Automatic energy compensation
- User menu in nine (9) different languages (English, Chinese, French, German, Japanese, Norwegian, Russian, Spanish, Swedish, Turkish)
- Long-lasting rechargeable battery
- Always free firmware upgrades
- Up to ten-year warranty
- Two-year Calibration Cycle
Please note: not suitable for dental panoramic X-ray tubes.
Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, and presents Waveform. Now upgraded with detector input to measure DAP, mAs, lowest-dose rates, light, CTDI, and more!
Cobia DENTAL comes with USB connectivity which makes it possible to use it together with the Ocean Next™ software on a laptop, PC, or Tablet.
Included: Internal display, internal rechargeable battery, micro-USB cable, power supply, Ocean Next™ software with Quick license, documentation, Soft-Shell transport case, and Basic online training.
Standard two-year warranty/calibration. Read about our pre-paid calibration and extended warranty.
Cobia Dental X-ray QA meter for constancy checks and acceptance testing of Intraoral and CBCT.
Cobia DENTAL is designed to be used at any dental clinic.
When adding panoramic to your dental QA, we recommend our multimeter – the Piranha DENTAL – together with our Ocean Next™ software.
Our Ocean Next™ software exhibits Cobia’s capabilities and adds benefits that make the workflow more practical and simpler. The software makes it possible to perform remote X-ray QA measurements with your Cobia DENTAL meter. You simply connect to your Cobia with a USB cable to your PC or Tablet, then measure!
With the addition of Ocean Next™ Professional, the Cobia DENTAL truly becomes an indispensable solution for data management, efficiency, time-saving procedures, and compliance.
