JOSTDewatering Screen

SHARE

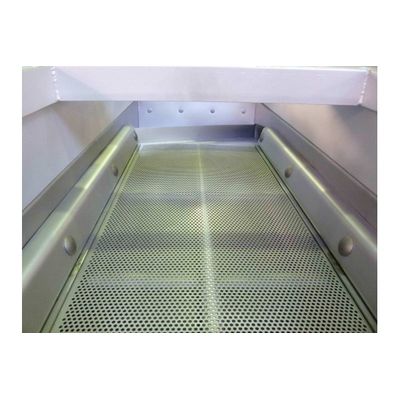

Dewatering screens were basically developed for the sand dewatering, and now they are used in nearly every industry e.g. iron ore or coal processing. The basic movement of dewatering screen is linear with horizontal mounting or upward inclination. With a high angle of attack and high acceleration, extremely low residual moisture values can be achieved. Based on the low conveying speed a high product layer will be created at the screen deck end, this gives an additional dewatering effect.

Most popular related searches
  • Fine material collector
  • Supporting structure
  • Plattform
  • Switchboard cabinet
  • Vibration monitoring system
  • Screen width: 400 – 3600mm
  • Screen length: 1500 – 6000mm
  • Drive via two unbalance motors or exciter
  • Heavy-duty design for high product forces
  • High dewatering efficiency
  • Only few fines in throughput to minimize to pollution of the water circuit
  • Long life screen decks made of polyurethane material
