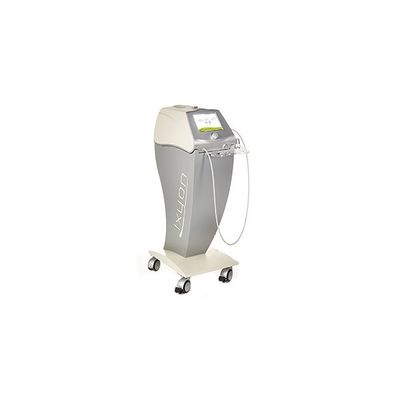

Mectronic - Model IXYON XP -Doctor Tecar Therapy
FromMecmedix
Available in two distinct configurations, the first with 6 wavelengths (650nm + 780nm + 810nm + 980nm + 1064nm + 1210nm) and 50W of power and the second with 8 wavelengths (450nm + 650nm + 780nm + 810nm + 905nm + 980nm + 1064nm + 1210nm) and 92W of power, Ixyon XP represents the reference point of THEAL Therapy. Thanks to the ability to mix up to 8 lengths using the Lambda Mixer system, Ixyon XP allows you to fully adjust the therapy in order to dramatically improve the therapeutic performance. Ixyon XP modulates laser light to adapt the therapy to the specific patient and the specific pathology. To do so, Ixyon XP has 11 different emission modes, some of which are patented as the Stochastic E²C evolution mode.
Most popular related searches
In addition, Ixyon XP allows you to create customized output modes by combining, if necessary, different emission modes for each wavelength, thanks to the revolutionary Wave Creator system. Ixyon XP features the innovative Light Blade handpiece, equipped with patented magnetic technology, and expandable with 10 different applicators to maximize therapy.
- Technology: Mectronic’s own MecOs 3.0 OMNIA Real-Time Operating System
- Wavelenght: 450nm, 650nm, 780nm, 810nm, 905nm, 980nm, 1064nm, 1210nm
- Guide Light: 650 nm - up to 3mW
- Laser power: Up to 92W
- Emission: Continuous (CW), Pulsed, Super-pulsed, E²C (patented stochastic mode), AntInf, HPM and Dimmer
- Personal emission: Wave Creator
- Operation mode: Manual, Single Pulse, Burst and Custom mode
- Special modes: Joule mode, Timer mode, Trigger Point mode, Effect Finder, Tissue Target System and Temperature Control mode
- Effect Mode: 5 specific emission modes to maximise the 5 main effects of THEAL THERAPY: Bio-stimulant, Analgesic, Anti-inflammatory, Anti-edema, and Tension Relief
- Pathologies: Over 90 therapeutic protocols with interactive illustrations and protocols sub-divided by phase
- Calibration: Graphic and acoustic control system for laser emission at handpiece exit in accordance with norm CEI EN 60825-1
- Display: Colour TFT 8” Touch - screen
- Supply: 100 ÷ 240V 50 ÷ 60Hz
- Absorption: 160 VA
- Dimensions:
- 300 x 450 x 250 mm (case)
- 300 x 450 x 1070 mm (with trolley)
- Weight: 7 kg (case)
- 22 kg (with trolley)
- Laser Class: IV
- Beam divergence: 25°
- Puls Width: 1 - 1000 ms
- IP Classification: IPX0 device
- IPX0 handpiece
- IPX4 pneumatic footswitch
- Terms operating:
- 0 ÷ 30°C
- 30 ÷ 75% humidity non-condensing
- 700 ÷ 1060 hPa
- Terms Transportation and storage:
- -10 ÷ 55°C
- 10 ÷ 100% humidity non-condensing
- 500 ÷ 1060 hPa
- EMP: Maximal emission permit on skin 5600W/m²
- EMP: Maximal emission permit on cornea 9W/m²
- DNRO: Nominal Distance of Ocular Risk 4m
- Conformity: IEC/EC 60601-1; IEC 60601-1-2; IEC 60601-2-22
- Directive 93/42: llb Classification
