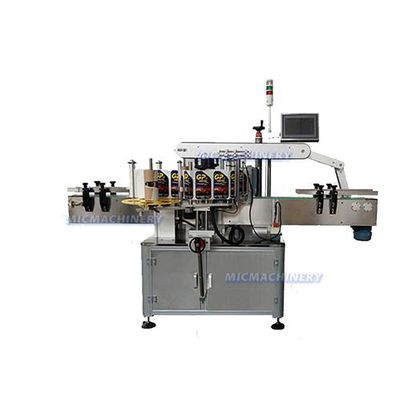

Mic - Model MIC-DT60 - Double Side Labeller
Control system: SIEMENS PLC control system, with stable operation and extremely low failure rate. Operation system:SIEMENS touch screen, directly visual interface and easy operation, Chinese and English language change conveniently, also with help function and fault display function;
- Model : MIC-DT60
- Driving Mode: Servo motor
- Yield(pcs/min): 20-180( depends on bottle and label sizes )
- Operating direction: Left or Right
- Conveyor Speed(m/min): ≤40
- Labeling Accuracy: ±1.0 mm
- Label roll inner diameter: 76 mm
- Label roll outer diameter: 350 mm(max)
- The suitable size of label: Standard size: H: 15-180 mm L: 15-300 mm (Other size can customized )
- The suitable size of bottles: Can customized
- Printer device use air: 5kg/cm 2
- Power(w): 1000W
- Weight(kg): 350
- Conveyor height: 950±50mm (Height can customized)
- Machine size: 3000(L) l800(W) 1800(H)mm
- Voltage (In China): AC220V 50/60HZ Single phase (Can customized )
Check system: Use German LEUZE check label sensor, automatic check labeling station, stable and convenient don’t have much higher requirement with worker;
Send label system:use SIEMENS high-power servo control system, stable and high speed;
Parameter SAVE:can save 30 groups labeling parameters, when change bottles, don’t need reset parameters, just adjust the machine part is ok.
Alarm function : label spill, label broken or other malfunction during working,machine will alarm and stop working.
Machine Material:Whole machine and spare parts use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
Labeling way : Servo system;
Low voltage circuit all use German Schneider brand.
