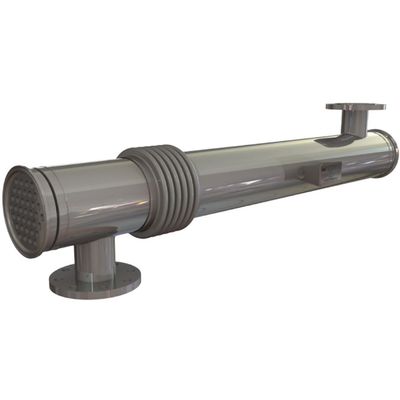

HRS - Model SP Series - Double Tubeplate Pharmaceutical Heat Exchangers
The HRS SP Series is a multitube shell and tube heat exchanger designed with the added security of a double tubeplate, providing leak detection to avoid cross contamination between the service and product fluids. The HRS SP series is perfect for pharmaceutical applications. Using our corrugation technology, heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is minimised.
Most popular related searches
pharmaceuticals
pharmaceutical application
pharmaceutical industry
pharmaceutical beverage
injectable application
- PD 5500, PED 2014/68/EU, ASME - TR CU 032, DOSH Compliant
Standard Materials of Construction:
- Service side: AISI 304/316L stainless steel
- Product side: AISI 316L stainless steel
Other material options available
Standard Connections:
- Service side: Flange
- Product side: Clamp
All flange & clamp types available
Surface Finish:
- External: Polished
- Internal: Electropolished version available
Design code and compliance:
- PD5500, PED 2014/68/EU, ASME
- TR CU 032 & DOSH Compliant
Typical applications of the HRS SP Series heat exchangers include:
- Water for Injection (WFI)
- Purified Water
Applications related to Double Tubeplate Pharmaceutical Heat Exchangers – HRS SP Series
- Environmental
- Food & Beverages
- Pharmaceutical
- WFI
- Industrial
- Corrugated tubes for increased heat transfer
- Bellows are fitted to absorb differential expansion between shell and inner tubes
- Multiple units can be interconnected and mounted in a frame
- Multipass version available
