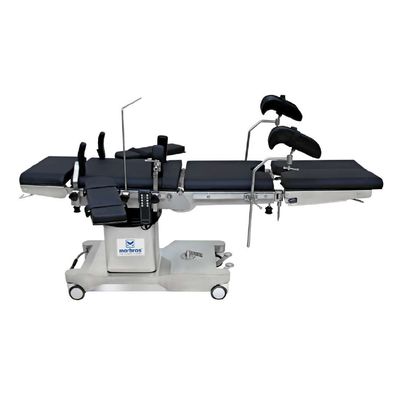

Morbros India - Model Matrix EHO -Electro Hydraulic OT Table With Manual Override System
Matrix EHO Electro Hydraulic OT Table by Morbros India is engineered for efficiency and versatility in the operating theatre. This table is characterized by its electro-hydraulic system, featuring a five-sectional radio-translucent top and a robust construction with a center pillar and stainless steel fittings. It can support up to 350 kg and includes a built-in kidney bridge. The design incorporates sophisticated mechanics that allow smooth, stepless articulation of the table's top, ensuring precise positioning of the patient. It includes a standby battery backup with a recharging circuit, enhancing its reliability in critical situations. Additionally, the table meets the latest European and American standards with its SMPS-based control box designed to handle voltage fluctuations, reducing power consumption. Its ergonomic remote features LED backlit switches for easy operation regardless of lighting conditions. The table's functionality extends to patient reverse orientation mode, facilitated by interchangeably designed head and leg sections.
- Length of Table : 2000 mm
- Width of Table Top : 540 mm Height (without Mattress)
- Minimum Height (without Mattress) : Min. 750 mm
- Maximum Height (without Mattress) : Max. 1050 mm
- Trendelenburg : 25°
- Lateral Tilt : +20°
- Back Section : +70°
- Head Section : +60°
- Leg Section : 0°-90°
- Floor Locking System : Center Floor Locking
- Weight Capacity : 300 kg
- Top Sliding : 5" Reverse & 5" Forward
- We are providing SMPS based control box which can handle better Voltage Fluctuations, When SMPS is idle there is zero current consumption and saves power. These are as per new European and American standards where the idle power consumption should be zero and where transformer based systems are outdated.
- We provide remote which is ergonomically designed to have an easy and better grip with spiral cable and it has LED backlit switch with symbolic position figures making it convenient to use even in the dark.
- We provide zero position facility i.e by pressing the single button OT Table will come to normal position.
- We provide 2 memory function in control panel.
- We provide indication of battery back in the second handset.
- The Handset is designed with Back LED Indicator for better visibility.
- Head and foot section is manually operated by the means of Ratchet System.
- We provide Stainless steel Covered Base and Column Covers for easy cleaning and hygiene.
- We provide Anti Bacterial and Anti Fungal Mattress.
- The motion of table is easy with double swivel castors 100mm diameter, in which 2 castors having brakes.
- We provide patient reverse orientation mode when head and leg section are interchanged.
- Center Pillar
- Stainless Fitting - Detachable, head, leg & Pelvic section
- In built kidney bridge
- Five Sectional Radio - Translucent Top.
- Base & Cover made of attractive, easy to clean Stainless Steel.
- Sophisticated mechanics provide smooth, step less articulation of the table Top for precise patient positioning.
- Standby Battery Back-up with recharging circuit.
