Loomia - Electronic Layer for Custom Antenna and Interconnect Solutions
Loomia specializes in the development of the Loomia Electronic Layer (LEL), a versatile conductive mesh capable of being patterned according to custom specifications for use as antennas or interconnects. The LEL can accommodate intricate designs with its multi-layer capabilities and a pitch limitation of 2.54mm by 2.54mm. This allows for the creation of complex crossovers essential for high-frequency communication technologies. Unlike traditional printed circuit solutions, the LEL does not rely on costly silver metals, making it an efficient choice for low-resistance components that are scalable to high production volumes. With the ability to produce up to 20,000 units weekly in ISO-certified facilities, including those compliant with medical standards, the LEL provides robust solutions for automotive, robotics, AR/VR, and medical industries. Notably used in the development of RF-emitting smart-bed covers, the LEL's design highlights its capability in supporting mass-production needs.

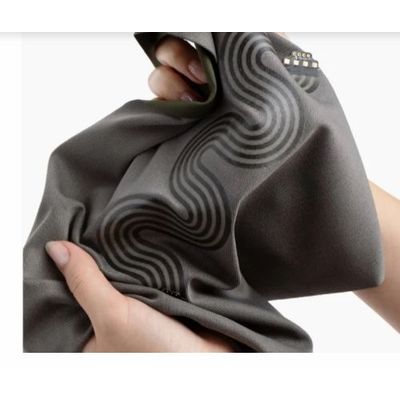

The Loomia Electronic Layer can be designed to work as an antenna or an interconnect by patterning our conductive traces according to your spec.
Cabling and Antenna Product Details
The Loomia Electronic Layer can be designed to work as an antenna or an interconnect by patterning our conductive traces according to your spec.
Design Rules
The Loomia Electronic Layer pitch limitation is .1" by .1" or 2.54mm by 2.54mm. We can lay out traces based on your design within these rules.
The LEL can also be designed to be multi-layer, allowing for crossovers for antennas complicated designs.
Customization
It all begins with an idea. Maybe you want to launch a business. Maybe you want to turn a hobby into something more.
Production
- Can scale up to 20,000 units per week in an ISO 9001 facility
- Can be produced in an ISO 13495 facility for medical applications
Unlike printed solutions, Loomia does not need expensive silver metals to achieve a low resistance part. This is why Hapbee chose Loomia for their smart-bed cover R&D Development, featured by NASDAQ. This development required large size, low resistance coils that could emit a radio frequency according to spec. The Loomia Electronic Layer conductive mesh met the customer needs and could be produced in bulk to support mass-production.
