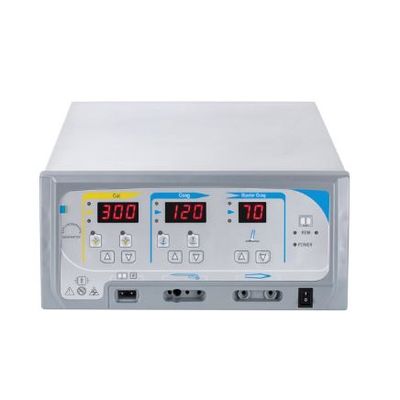

IVETWELL - Model IVT-300B -Electrosurgical Device

Intelligent Device System

• The intuitive design and user-friendly set-up of the Ivetwell IVT-300B Electrosurgical Device (diathermy) for us in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.

REM (Return Electrode Monitoring)

• Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of.

Multilanguage Available:

• Language options: English, Spanish, Portuguese, Turkish and etc

Application of Use

• General Surgery; Gastroenterology Dermatology; Vascular Surgery; Obstetrics and Gynecology Heart/ Thoracic Surgery; ORL/ENT; Minimally Invasive Surgery (MSI) Cerebral surgery Neurosurgery, Orthopedics & Plastic Surgery, Trans Urethral Resection (TUR) and etc.

Versatile system that is uniquely compatible with other, including:

• Under water cut socket (Endo cut) HV argon coagulation system
• Optimum Smoke Evacuation System-Clean air in the operation theatre

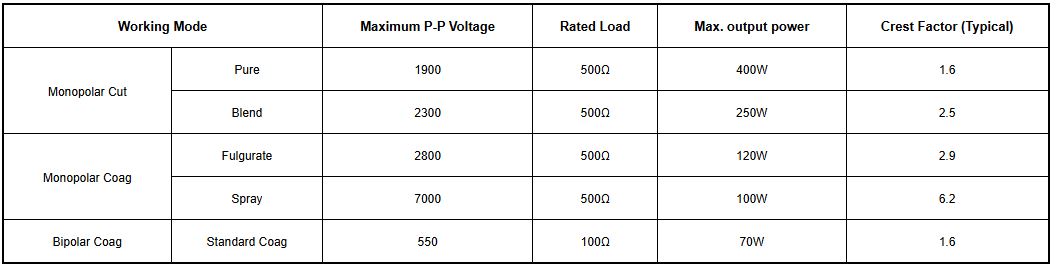

Technical Specification

• Main Frequency: 512 KHz
• Power Supply: 110V/60Hz;220V/50Hz

Low Frequency Leakage:

• Normal Polarity, Intact Chassis Ground:
• Reverse Polarity, Ground Open< 50μA
• Sink Current, 140V Applied, All inputs < 50μA

Weight and Dimension:

• Weight: 8.00KG
• Dimension: 34*16*47

High Frequency Leakage:

• Monopolar: < 150mA;
• Bipolar < 60mA
