Bashir - Model S-B -Endovascular Catheter

The BASHIR™ S-B Endovascular Catheter is a device intended for the localized infusion of physician-specified fluids, including thrombolytics, into the peripheral vasculature.

The distal infusion segment of the device is 10 cm (3.94 in) long and consists of an expandable basket with mini-infusion catheters, each with multiple infusion holes (hereafter referred to as “infusion basket,” Table 1).

The infusion basket can be expanded using the red actuator located on the handle at the proximal end of the device (Figure 2).

After expansion, the mini-infusion catheters may be returned to their original closed positions by depressing the white button on the actuator and advancing the actuator toward the distal end of the device. The basket infusion line connector is also located on the handle.

The catheter is advanced over a guide-wire using standard endovascular interventional techniques and is compatible with standard infusion connectors, accessories and equipment.

It is used for the delivery of the physician-specified fluids at multiple cross-sectional points of the target vessel location (Figure 1).

* BASHIR™ S-B Endovascular Catheters are for use only by trained physicians in strict accordance with the FDA cleared IFU.

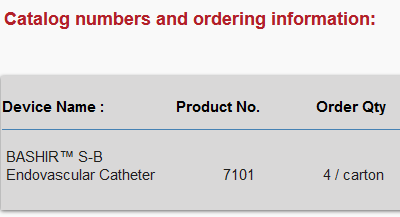

Table 1. Key Dimensions, Bashir S-B Endovascular Catheter (Ref. No. 7101)

• French size: 7 F (2.3 mm)
• Effective length: 92.5 cm (36.44 in)
• Infusion basket length: 10 cm (3.94 in)
• Infusion basket diameter: 42 mm max.
