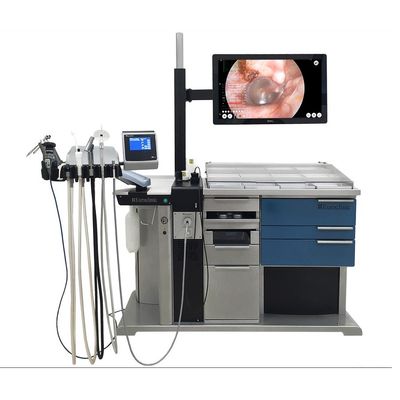

Otocompact Professional - ENT Treatment Unit
High Range ENT workstation for a diagnostic, endoscopic and microscopy complete activity. Solid case in steel painted with epoxy powders in color white or silver gray (at choice). Transparent gloss layer for easy cleaning and better protection against external agents (optional). Such treatment grants a long durability in time and high resistance of the colors to the light. The case is also mobile on 6 antistatic castors with brakes that help the operator in the floor cleaning and disinfection as well as in the easy positioning anywhere in the outpatient room. Working top in tempered glass or Corian® easy to clean, anti-scratch and water resistant for an high degree of Infection control. Linear surface for an easier disinfection against proliferation of bacteria.
Color touch screen display 4,3
Color touch screen display 4,3" on instruments tablet, with articulated arm, for instruments control and remote control of the 3/4 motors chair (if combined and with radiofrequency predisposition). Instruments Tablet with predisposition up to 5 instruments.
Digital manometer and vacuum control.
Column-type central module
Column-type drawers composed with: 1 Drawer for instruments with 2 stainless steel trays; 1 pull-out accessory compartment for tampons and depressors (As alternative it is possible to have a shelf to house external stroboscopic light source); 1 Drawer for dirty instruments with removable plastic tray and with the possibility to add disinfectant liquid; 1 big drawer as waste bin (available also motorized version).
- Color and adjustable touch screen display 4,3``
- Wireless control of the motorized movement of the combined 3-4 motors ENT chair, if provided
- Powered suction system (50 lt/min or 70 lt/min) complete with suction jar (1 lt. capacity)
- Hydrophobic filter
- Kit of stainless steel canula for suction
- Ear funnel
- Nr. 3 endoscope supports in Plexiglass, integrated in the structure
- Nr. 2 supports for headlamp
- Up to 10 drawers combinations available for instruments storage and with the possibility to house also external electro-medical devices - Frontal Drawers in metal painted with epoxidy powders or in glass ( more than 20 nuances available)
- Motorized waste bin
- Application of second suction system
- Application of single use suction jar (1 or 2 lt. capacity)
- Automatic discharge system
- Application of rinsing system for suction tube
- Connection to the main water system
- Insufflation system with digital manometer
- Application of ear washing syringe, with fixed temperature
- Application of medicament kit for pulverization of powder and liquid medications
- Nr. 8 integrated supports of endoscope in Plexiglass
- Warming application for 2 endoscope supports
- Integrated LED light source with 1 or 2 output - color temperature 5.500°K/200 L
- LED light source with handpiece, direct connection to endoscopes
- Superior modular desk in 3 levels complete with stainless steel trays (optional, warmed)
- Pole support for microscope and monitor articulated arm
- Video-Endoscopy system
- Microscope
- Video Nistagmoscope
- Rhinomanometer
- Power supply tension: 220/240 V(110/115 VAC)
- Frequency: 50/60 Hz
- Absorbed power (MAX maximum configuration): 1200 VA
- Weight: 180 Kg
- Maximum number of instruments: 4
- Insufflator air capacity: 26 l/m (variation up to 250 Kpa)
- Washing stringe capacity: 350/400 cc/min (2 Bar)
- Nominal suction (oil motor): -86 KPa (-650 mm Hg,50L/min)
- Power supply fuses: F1, F2 = 6,3A T
- Fuse external Plug: F3 =4A T
