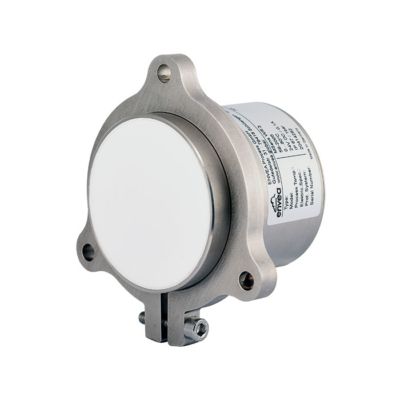

ENVEA - Model M-Sens WR3 - Online Residual Moisture Measurement Sensor

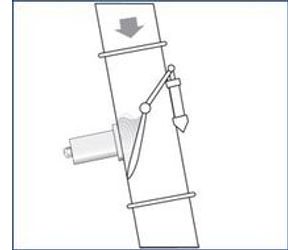

Free fall pipe

To be able to measure in free fall pipes or inclined pipes (chutes) with the M-Sens 2, it is possible to gather material in front of the probe in the short term, for the duration the measurement, with a catching mechanism. After the measurement, the flap will open again and allows the gathered material to continue to drop. The measuring process can be permanently repeated in short or long intervals according to requirements.

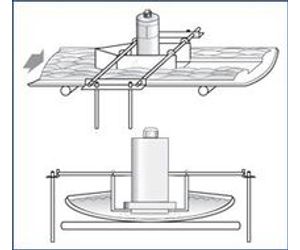

Conveyor belt

Measurement of material moisture on a conveyor belt.

A constant material height is generated by attaching a material skimmer. This offers ideal conditions for an online measurement.

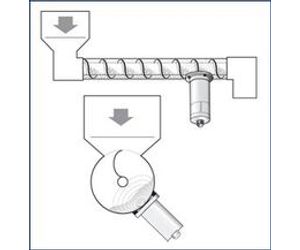

The installation in the lower third of a conveyor screw has the advantage that the material volume that passes over the sensor is almost constant, allowing for an optimal measurement. The movement of the auger flights is hidden.

Installation situations

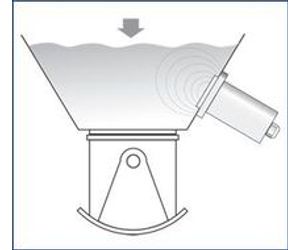

Container

For a simple installation, a standard connection flange is available.

Flexible positioning

The M-Sens 2 was developed to offer maximum flexibility during assembly. The following aspects should be taken into account in the positioning of the probe: The measuring field penetrates the densest materials (e. g. sand). With a minimum depth of 120 mm, the probe should always be directed at the material to avoid reflection problems.
