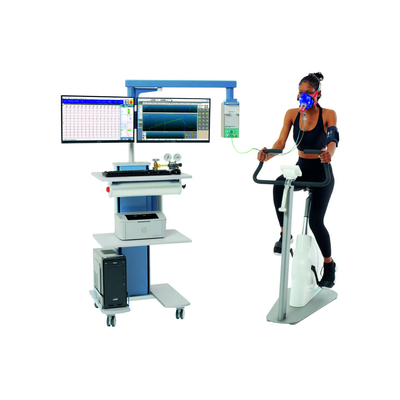

Piston - Model PRE-201 PRE-201/cc and PRE-201/pm -Ergo Spirometer or Spiro Ergometer

International guidelines and requirements

• Statement on Cardiopulmonary Exercise Testing
  American Thoracic Society and American College of Chest Physicians
  November 1, 2001
• Clinician’s Guide to Cardiopulmonary Exercise Testing in Adults
  A Scientific Statement from the American Heart Association, Circulation Journal, 2010-07-21
• Standardization of Lung Function Testing
  ATS/ERS Task force, European Respiratory Journal 2005

Comfortable solutions for the patient and for medical staff as well

• Extremely small and light patient circuit
• PinkFlow flow meter without any moving parts and electrical connection
• Single use or disinfectable patient circuit
• Automatic calibration and self test

Exercise modes

• Bicycle and treadmill
• Selectable and user definable exercise testing protocols
• Progressive incremental bicycle exercise protocols
  Step and Ramp
• Maximal incremental treadmill protocols
  Bruce protocol and Balke protocol
• Constant work rate protocol
• Multistage exercise protocol with a pseudo steady state at each level
• Discontinuous protocol

• Breath by breath gas analysis
• Mixing chamber gas analysis (optional)
• FVC measurement
• IVC measurement
• MVV measurement
• Normal ECG recording

• Flow meter: PinkFlow
• Type: PPF-18
• Principle: Symmetric and averaging Pitot tube
• Flow range: ±18 l/s
• Accuracy: ±2% or 50 ml, whichever is greater
• Dead space: 36 ml
• Resistance: 60 Pa/l/s @ 15 l/s
• CO2 gas analyzer: NDIR
• Range: 0-10%
• Accuracy: 0,05%
• Response time T90: 130 ms
• O2 gas analyzer: PRE-101/cc: Chemical cell
• PRE-101/pm: Paramagnetic oxygen sensor
• Range: 0-100%
• Accuracy: 0,05%
• Response T90: 130 ms
• ECG:
• Leads: 12 Standard, + 3 Frank
• Resolution:: 2.5 uV/bit, 12 bit A/D
• Size without patient circuit: Height: 130 mm
• Wide: 260 mm
• Long: 390 mm
• Weight: 4 kg
• Power supply: 90 ÷ 260 VAC 50/60 Hz
• Power consumption: 60 VA
