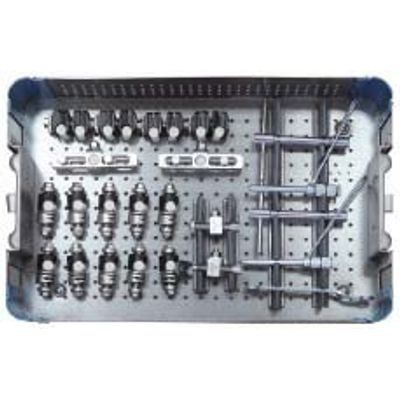

OrthoProMed - External Fixator φ11 Dissection Instrument Case for Fracture Reduction
The External Fixator φ11 Dissection Instrument Case serves a crucial role in fracture reduction surgeries. This comprehensive set includes a variety of components such as rods, pins, clamps, and connection rods, engineered for precise screw insertion and fracture site compression. The set features a T-pin inserter, drill bits, and a dual-use spanner wrench crucial for effective surgery. During operations, the patient is positioned in a supine position, facilitating access for pin insertion through the proximalmedial tibial. This instrument case also includes modules for efficient drilling and bone penetration, aiding in accurate and timely completion of procedures. To ensure reliable fixation, it allows for the coupling and constructive alignment of rods and pins, with the added functionality of compression clamps if additional site compression is necessary. The entire installation process emphasizes stability, ensuring that all components are securely fixed, while washing the wound with saline post-installation is recommended to promote recovery.
- External fixator instrument case for fracture reduction surgeries
- Includes various components such as rods, pins, clamps, and connection rods
- Designed for precise screw insertion and fracture site compression
- Features a T-pin inserter, drill bits, and a dual-use spanner wrench
External Fixator Operation Instructions:
- Body Position: patient in the spine position, for fracture reduction.
- To sure the point of pin: Insert the screw through the Proximalmedial Tibial, chose the first point of pin which near fracture site 4-5cm, incision of skin, separate subcutaneous tissue, install the drilling module, put the position pin together with sleeve incision to the periosteum.
- Drill Hole: remove the position pin, put the inside sleeve into the outside sleeve, use the stopper drill guide to drill hole, when drill bit drilling through cortical bone one side, touching another side cortical bone, determine the position of Stopper drill bit according to the thickness of the cortical bone and fixed on the drill bit and continue drilling until drill out another side or Cortical Bone.
- Pin insert: chose the right screw size, use T-Pin insert the screw, drill out contralateral bone two threads. confirm the screw position through X·Ray image
- Install the clamp: remove the Drilling module. install the coupling, use Rod and pin to fix, insert the second screw with the same way, and continue install the coupling, Rod, Pin.
- Fracture site compression: if need compression. use the compression clamp coupling 2 screws, then fix the coupling.
- Check the Coupling and Rod is firmly fixed.
- It is best to wash the wound with saline.
