Raythink - Model SR1200 -Eye-Safe Laser Rangefinder Module for Integrated Systems
The SR1200 Eye-Safe Laser Rangefinder Module by Raythink is engineered for high precision in system functionalities with its advanced multi-pulse technology. This module offers a remarkable measuring range of up to 1,200 meters, packaged within an ultra-compact size that facilitates easy system integration. Operating at a wavelength of 905 nm within a Class 1 safety classification according to IEC 60825-1 standards, the module provides accurate ranging with low power consumption, making it suitable for applications such as handheld laser rangefinders and UAVs. It features an angular resolution of approximately 1x6 mrad and a frequency of up to 3Hz over varying distances. Supporting multiple UART communication protocols and requiring a minimal operational voltage, the SR1200 demonstrates efficient power usage and robust environmental resilience. Its precision and compactness are particularly advantageous for integration into multi-spectral telescopes and scopes, supporting diverse technological and industrial applications.Most popular related searches
- Based on a 905nm semiconductor laser, this module is specially designed for systems with strict requirements on size and weight.
- Using mature and stable semiconductor lasers and custom-designed receiving detectors coupled with a high-performance optical system, we devote ourselves to the development of multi-pulse rangefinding algorithms.
- This has enabled the creation of a next-generation, industry-leading miniature laser rangefinder module that is suitable for widespread applications across various industries.
Ultra-High Performance for Optimal System Functionality
Ensures optimal system performance with self-developed multi-pulse technology that achieves a measuring range of 1,200 meters within a compact form factor.
Ultra-Compact Size for Enhanced System Integration

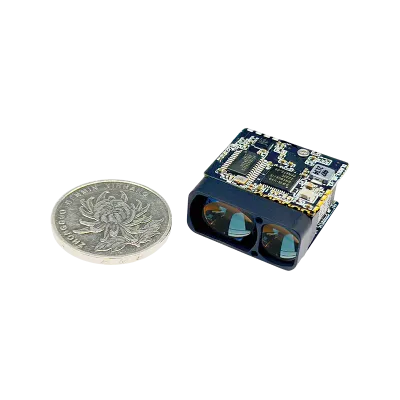

- The SR1200 laser rangefinder module measures just 25×26×13mm, making it the smallest among similar products.
- Weighing only 10g, the module takes up minimal space and weight when integrated into systems.
Easier System Integration
- Uses a standard UART interface that supports universal serial port communication protocols.
- Provides an instruction set for sending and receiving data, facilitating seamless communication with the main control and ensuring easy system integration.
