Biorad-Medisys - Flexible Digital Disposable Ureteroscope

FromBiorad Medisys Private Limited

SHARE

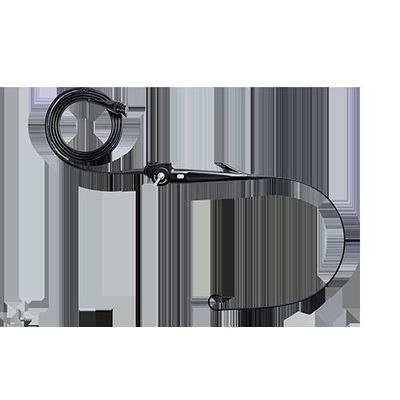

The Indoscope Sleek Ureteroscope is a flexible Ureteroscope designed to provide easy access with its tapering tip profile and slender shaft diameter of 7.5 Fr. The tip of the Ureteroscope is empowered by a high resolution CMOS chip to provide magnificent vision during ureteroscopy. Ergonomic design and light weight handle of the Ureteroscope empowers surgeons to operate with ease.

Most popular related searches

flexible ureteroscopy

vascular imaging

laser lithotripsy

digital ureteroscopy

No Repairs

Ergonomic Design
Superior Image Quality
Consistent Performance

Tip

Tapering Tip Profile
Digital CMOS Imager
Integrated Camera Head
Floppy Tip For Passive Deflection
Versatile 270° Tip Deflection

Camera

Auto Brightness Control
Auto White Balance
110° Wide Field Of View
2 mm – 50 mm Depth of View

Handle

Light Weight
Logical Deflection System
Compatible With Laser Lithotripsy

Versatile Tip Deflection

Convenient to reach each Calyx-Investigate with ease.

Optical System

Field of View – 110°
Line of Vision- 0°
Depth of View- 2 mm – 50 mm
Illumination- Optical Fiber
Imaging- Digital CMOS Imager

Insertion Portion

Deflection of Tip- >270° up; >270° down
Diameter – 7.5 Fr
Working Channel – 3.3Fr
Working Length- 670mm
Deflection Mechanism- Logical Deflection System

Control Unit Features

Plug And Play For Easy Setup
Built-in Light Source
BNB For Sub Mucosal Vascular Imaging
USB 3.0 For Direct Recording
Multiple Video Output

Control Unit Specification

Storage / Data Transfer- USB 3.0
Image Functions- White Balance, Brightness Control,
Image Capture, Video Capture,
Vascular Image Enhancement.
Brightness Temperature- 5000 K- 6500 K
Video Connections- SDI, DVI, and HDMI
Power-100 V AC – 240 V AC
Frequency – 50Hz
Lamp- 60 W LED
Image Resolution- 1920 X 1080 HD
