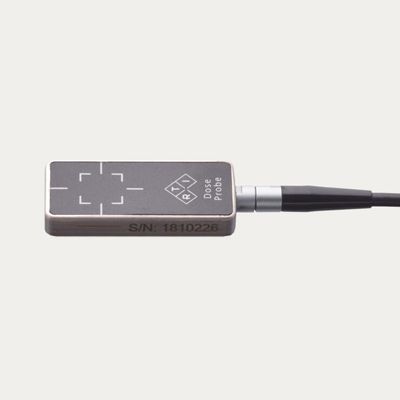

RTI - Fluoroscopy Dose Probe

For low dose rate measurements

The probe is very small to avoid or minimize interference with AEC (Automatic Exposure Control) on X-ray equipment. This also enables it to fit into the table bucky.

Since it is a solid-state detector, no corrections for pressure or temperature are needed. Neither is polarizing voltage.

Dose probe for Fluoroscopy

The RTI Dose Probe has a fast response which makes it ideal for pulsed fluoroscopy. It can detect individual pulses, determine pulse rate, and show waveform at dose rate.

RTI Dose Probe specifications with Piranha

• Size: 20 x 45 x 7.4 mm, 0.79" x 1.8" x 0.29"
• Weight: 85 g (3 oz)
• Cable length: 2.0 m (6.6 ft)
• Backscatter protected: Yes
• Dose: 100 pGy – 1.5 kGy. 12 nR – 170 kR (± 5%)
• Dose rate: 4 nGy/s – 150 mGy/s (±5 % or ±10 nGy/s).
• 0.46 μR/s – 16 R/s (±5 % or ±1 μR/s).
• 26 μR/min – 1000 R/min (±5 % or ±6 μR/min).
• Time: 0.1 ms – 34000 s (±1 % or ±0.5 ms)
• Pulses: 1 – 65535 pulses (±1 pulse)
• Dose per pulse: 1 nGy/pulse – 0.3 Gy/pulse
• Pulse rate/frequency: 0.5 – 100 Hz
• Pulse width: 4 ms - 2000 s

RTI Dose Probe specifications with Cobia FLEX & SENSE

• Size: 20 x 45 x 7.4 mm, 0.79" x 1.8" x 0.29"
• Weight: 85 g (3 oz)
• Cable length: 2.0 m (6.6 ft)
• Backscatter protected: Yes
• Dose: 6 nGy - 2 kGy. 660 nR - 250 kR (± 5%)
• Dose rate: 220 nGy/s - 220 mGy/s. 1.5 mR/min - 1.5 kR/min (± 5%)
• Time: 0.33 ms – 9999 s
• Pulses: 3 – 9999 pulses
• Dose per pulse: 1 nGy/pulse - 3 kGy/pulse. 114 nR/pulse - 342 kR/pulse
• Pulse rate/frequency: 1/6 - 260 Hz
