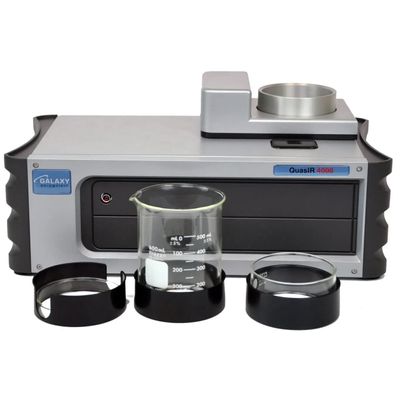

Galaxy Scientific QuasIR - Model 4000 -FT-NIR Spectrometer
The QuasIR™ 4000 FT-NIR spectrometer was designed from the ground up to offer the industry a new kind of NIR analysis solution – a solution that brings together the portability required to move NIR analysis closer to point-of-need, combined with unmatched spectroscopic performance for the fastest and most accurate results. It was engineered to ensure direct calibration transfer without the frustration of standardizing instruments or adjusting models to accommodate excessive instrument variability. The heart of the QuasIR™ 4000 FT-NIR Spectrometer is our PermAlign™ optics technology, an innovative optical design that maintains alignment and performance under conditions from the routine to the extreme. Our technology and design ensure unmatched consistency and direct methods transfer with no loss in performance so you can expand your QuasIR™ fleet with confidence.
Experts know that good NIR results always start with good sampling and this means a large measurement spot size and the largest possible sampling volume. With that in mind, the QuasIR™ 4000 NIR analyzer was engineered with an enhanced 23 mm sampling area, which is up to 5 times larger than competitive products. Our large sampling area with scratch resistant sapphire window helps produce better and more reproducible results. An internal background shutter mechanism permits automatic collection of background scans without the need for external reference materials or user interaction. An optional, easy-to-attach spinner further increases the sampling area, and various sampling cups and accessories increase the versatility of the instrument.
Additionally, the QuasIR™ 4000 FT-NIR spectrometer includes a transmission chamber that holds a cuvette or vial. Optional temperature control is available to enable a wide range of applications. Transmission samples such as edible oils, lubricants, and fuels can be easily analyzed for quality control or adulteration.
- Compact, portable, and high-performance FT-NIR spectrometer with large sample area integrating sphere for lab, process, and field applications
- PermAlign™ optics: an innovative optical design that maintains alignment and performance under extreme conditions
- Unmatched instrument-to-instrument consistency and direct method transfer so you can expand your QuasIR™ fleet with confidence
- Automatic Performance Testing Unit provides an easy and automated way to monitor your instruments performance
- Transmission sample chamber with optional temperature control for measuring liquids
- 23 mm sampling area, which is up to 5 times larger than competitive products
- Optional plug-and-play sample spinner accessory for measuring inhomogeneous samples
- Spectral Sage™ software suite combines the ease-of-use needed for every day analysis with feature-rich functions for advanced method developers.
- Low Cost of Ownership:
- 20,000-hour user replaceable NIR source
- > 10-year laser life
- > 10-year interferometer drive
- User replaceable desiccant
- Operated by standard Windows™ PC
Natural products, livestock, grains, flour milling, biofuels, corn & oilseed processing
Edible oils, meat, dairy, spices, snacks, alcoholic beverages, baked products, non-alcoholic beverages
Animal feed, feed ingredients, forages, pet food
Hydroxyl number, raw materials purity & confirmation, residual solvents analysis, additives, and monomers analysis
Drug manufacturing, raw materials ID, advanced ID, counterfeit drug screening
Whole leaf, cut tobacco, reconstituted tobacco and chewing tobacco
It is not feasible to list all the industries we serve. Aggregate, mining, and academia are amongst many others. If you are uncertain if our technology can meet your needs, please contact us to discuss the details of your application or to request a feasibility study.
Historically, transferring NIR calibrations from one instrument to another has been a challenging task. One of the greatest advantages of FT-NIR technology is direct calibration transfer. NIR calibration can easily be transferred from one FT-NIR instrument to another even if it is not the same model or made by the same manufacturer

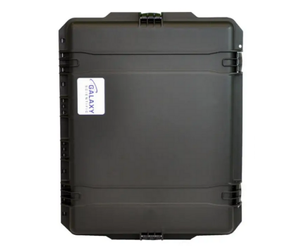

Galaxy Scientific FT-NIR spectrometers combine portability and performance to get the near infrared results you need, where and when you need them. Our robust and compact design is dust proof and splash proof and can be taken outside the lab to the point-of-need. Our near-infrared spectrometers are lightweight with a small footprint and quickly attach to a laptop or tablet computer, can operate from a variety of power sources, and have a rugged design that ensures they can be moved without damage.
Galaxy Scientific’s high-performance FT-NIR technology offers significant advantages such as high spectral resolution, best-in-class signal-to-noise ratio, inherently stable wavelength accuracy, and full spectral range. All models utilize Galaxy’s PermAlign™ Fourier Transform Technology, taking near-infrared instrumentation to the next level by offering incredibly high-performance measurements in a small, portable design. Benefits include permanent interferometer alignment, small & lightweight design, and robust field operation
This compact design allows us to offer “depot service” meaning our products can be easily shipped via standard shipping methods, without the need for a freight shipment. A product can be overnighted to us, evaluated and repaired (if needed) upon receipt and then overnighted back to our customer. This is much cheaper and faster than having to send a specialist to the customer site…
Galaxy Scientific products are designed to be easily installed by the end user and without the need for an expensive on-site product start-up by our experts.
The QuasIR 4000 is equipped with a high-performance gold-coated integrating sphere for NIR analysis in solids. It has an enhanced 23 mm sampling area, which is up to 5 times larger than competitive products. The large sampling area, with scratch-resistant sapphire window, helps produce better, more reproducible results.
The QuasIR 4000 is also equipped with a temperature-controlled transmission cell for NIR analysis in liquids. The liquids samples can be heated or cooled to a consistent temperature to improve the accuracy and repeatability of the measurements.
