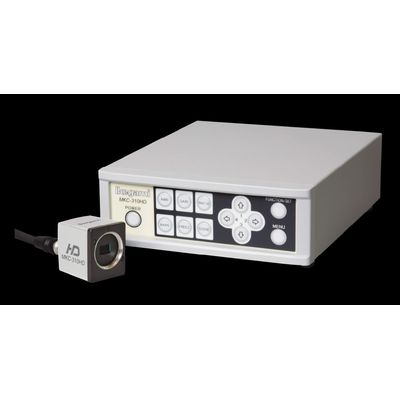

Ikegami - Model 3CM0S - MKC-310HD -Full-Hd Medical Grade Camera
The MKC-310HD employs 3 x 2.1Megapixel Full-HD 1/3-inch CMOS Sensor to provide 1000 lines of high definition video images through 3G-SDI output interface, coupled with High Sensitivity performance of F10/2000 lux providing the optimal video quality required for special applications.
Most popular related searches
- 3 Chip CMOS progressive Image Sensor
- 1/3-inch Full-HD (1920x1080)
- FPGA based
- High Resolution: Horizontal 1000 TV Lines, S/N 54dB
- High Sensitivity: F10 at 2000 lux
- Ultra Compact Camera Head: W34xH40D40mm
- Digital output: 3G HD-SDI 1080P
- OEM Possibility
- Scanning System : 1920 x 1080 50 / 59.94 Progressive
- Image Sensor : 1/3-inch 3 CMOS
- Lens Mount : C-mount
- Limiting Resolution : 1000 TV Lines
- Sensitivity : 2000 lx F10 / 3200 °K
- S/N Ratio : 54 dB (Gamma / Detail OFF)
- GAIN : 0 dB, +6 dB, +12 dB, +18 dB, +24 dB, +30 dB
- Output Signal HDTV : 3G / HD-SDI BNC 2 ch
- DVI (1920 x 1080 i / p) 1 ch (2nd Output as Option)
- Genlock BNC 1 ch, Sync Output BNC 1 ch
- Output Signal SDTV : Composite (VBS) BNC 1 ch
- S-Video S-Terminal 1 ch
- Output Signal IP Ethernet : RJ45 1 ch (Option)
- SD card Interface : Available (IP Ethernet Option Board)
- Camera Cable : 5 m or 7 m single (selectable depending on the Compositing)
- DC Iris Control : Available (from CCU)
- External Control : RS-232C 1 ch
- Operating Temperature : 0° C to +40 ° C
- Power Requirement : DC 12 V ±10 %
- Weight : Camera Head: 100 g; CCU: 1.1 kg
- Dimensions : Camera Head: W34 x H40 x D40 mm, CCU: W170 x H58 x D200 mm
- Compliance with medical safety standards : Compliance with medical safety standards:
- This product is distributed in the EU as a medical product and complies with the relevant product safety standards (e.g. IEC 60601-1).
- * For more information, please contact our European headquarters or your Ikegami distributor.
